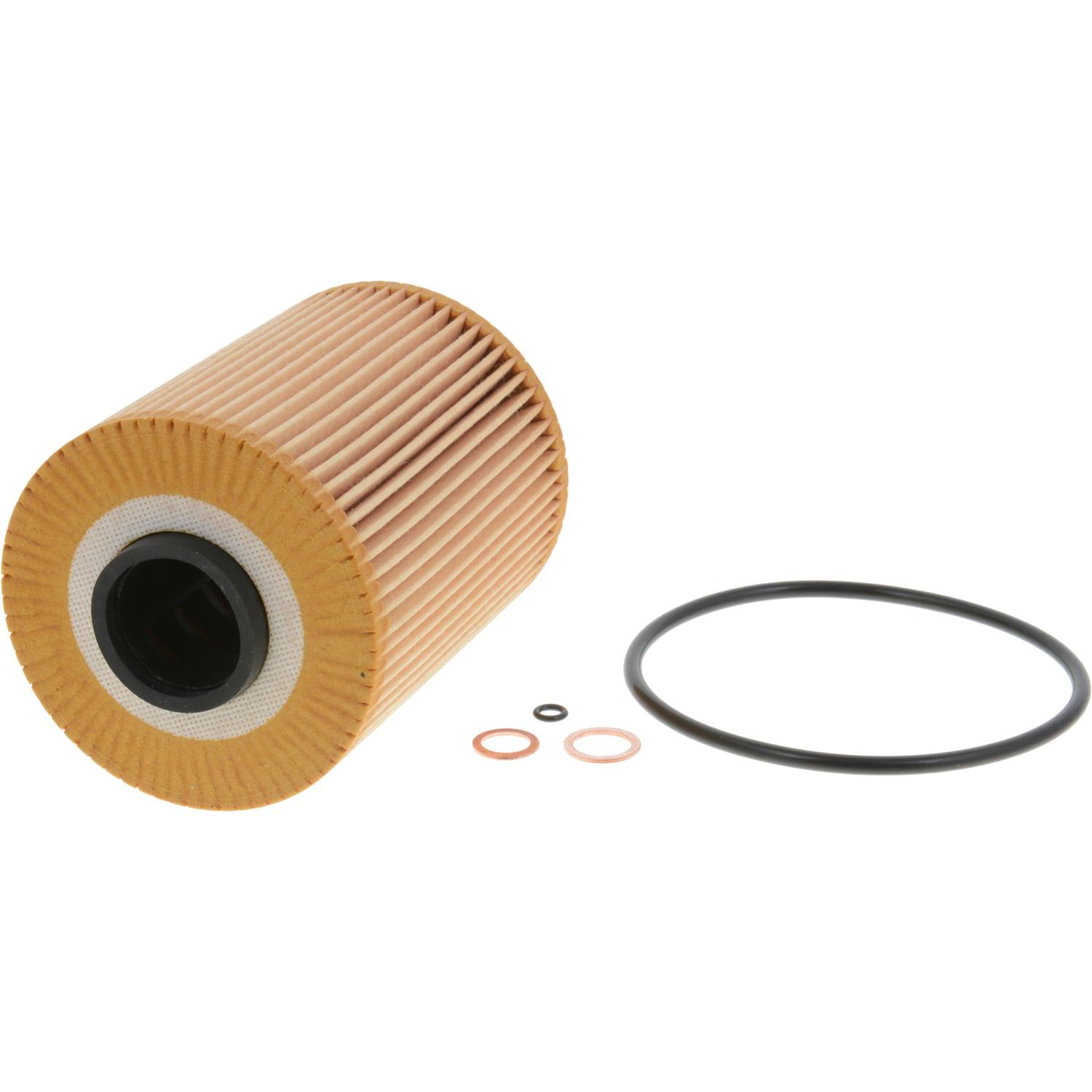

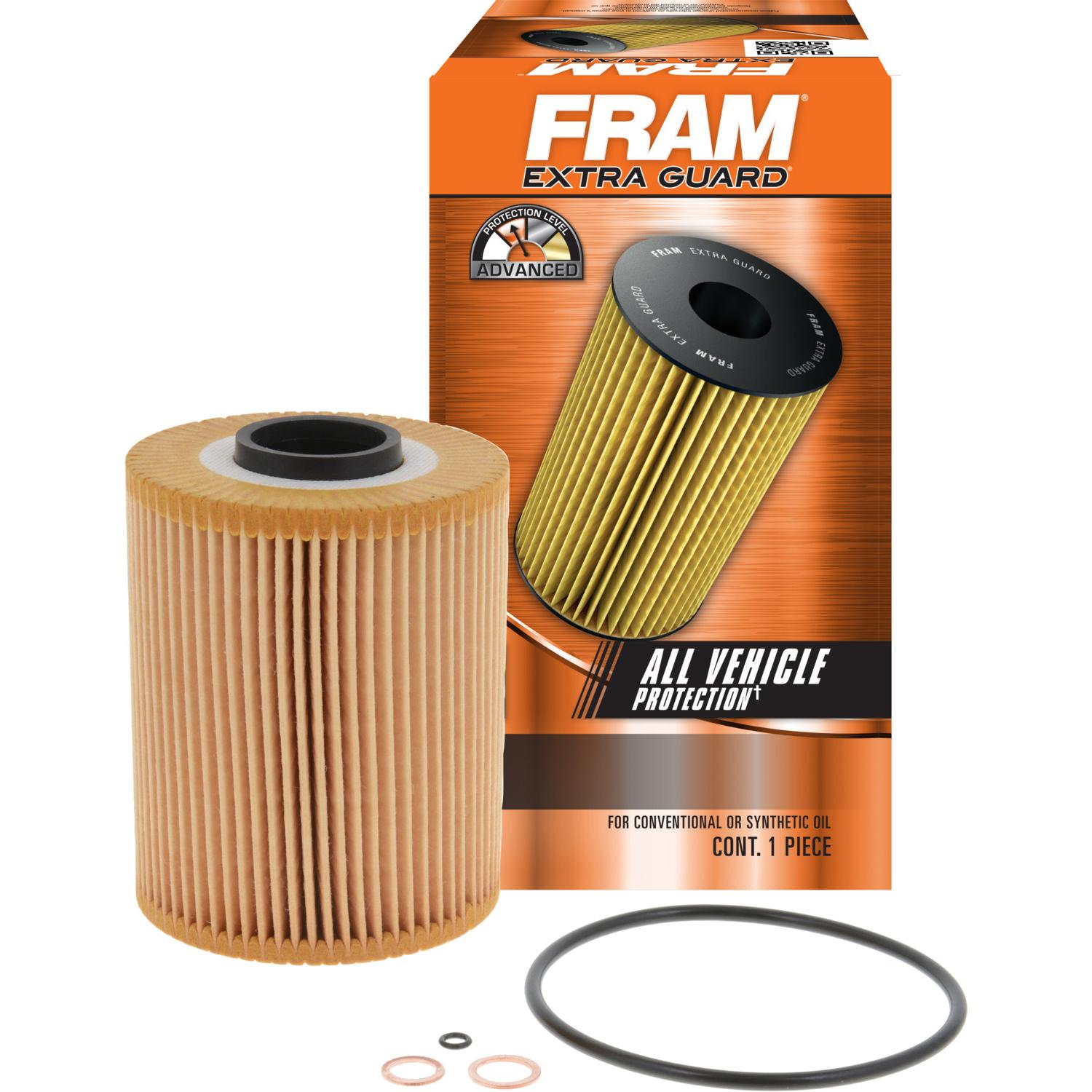

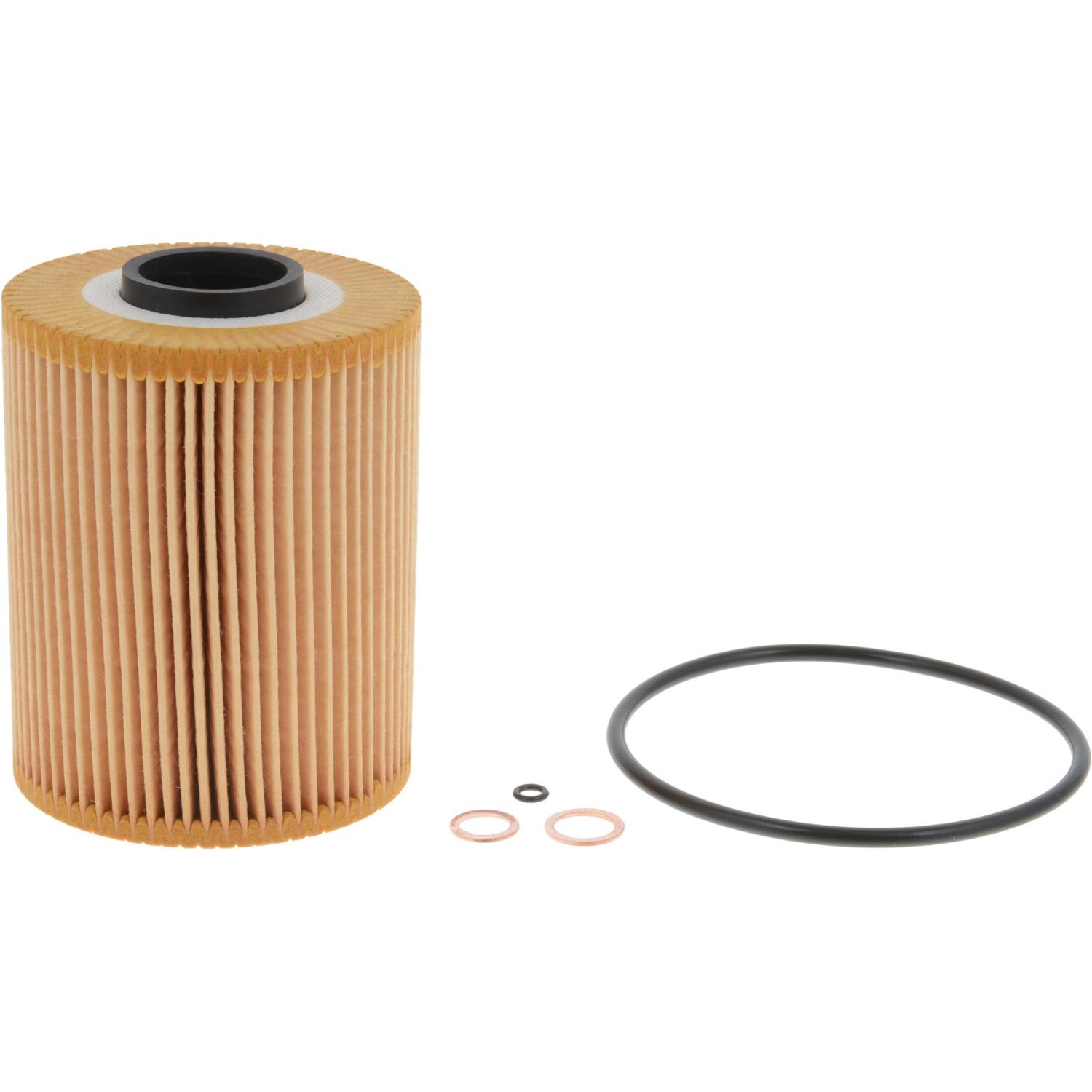

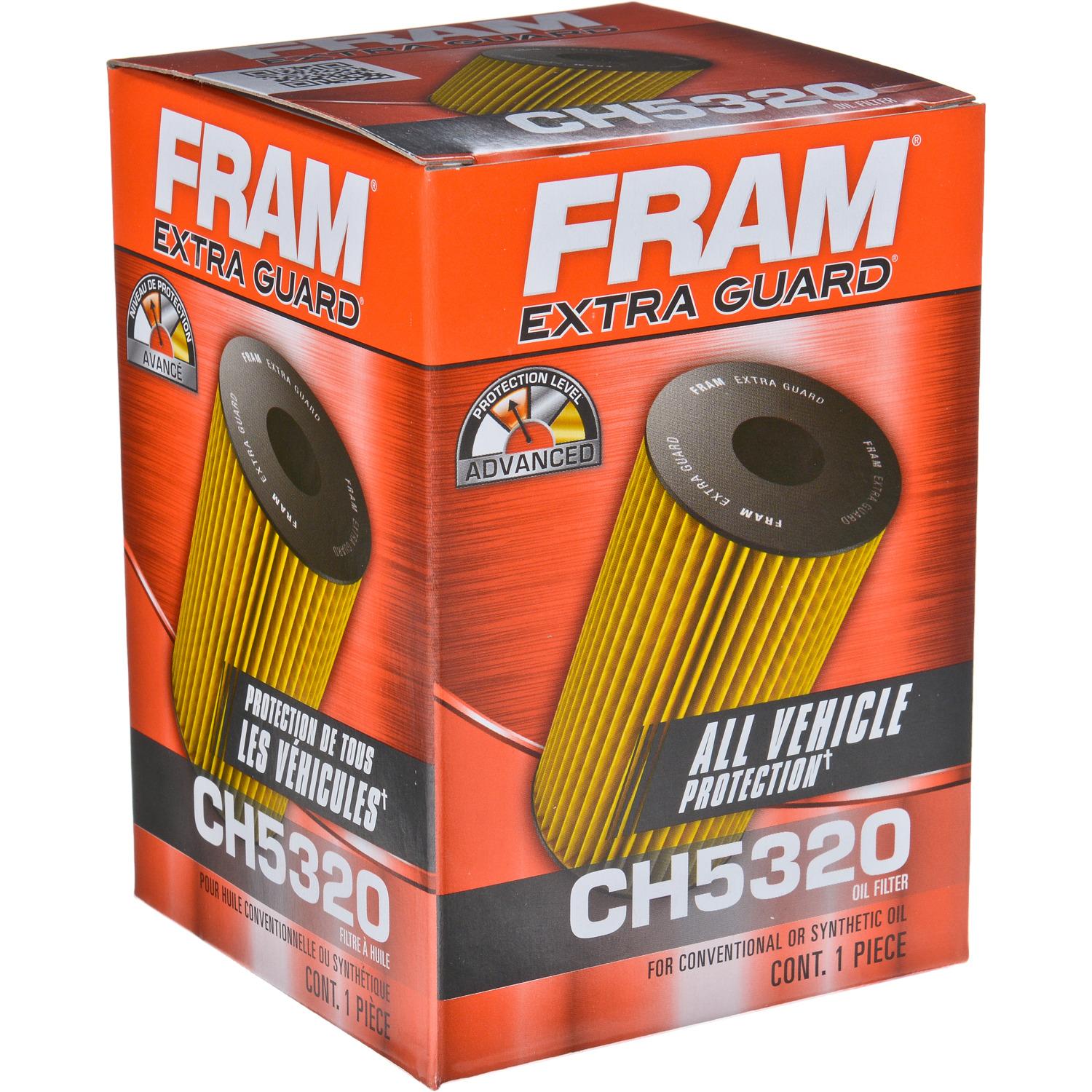

Name: Fram CH5320 Engine Oil Filter
Brand: Fram
SKU: CH5320
Price: 17.79 CAD
Availability: InStock

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Engineered for use with synthetic or conventional motor oils
Filter media is a blend of fiber and resin that captures 95%€¯of the dirt particles
Proven protection for up to 10,000 miles
The perfect balance of dirt-trapping efficiency and dirt-holding capacity
Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today€™s engines
FRAM Extra GuardÂ© oil filters deliver advanced engine protection for everyday drivers who perform routine oil changes at OE (original equipment) recommended intervals. Engineered for conventional and synthetic motor oil, Extra Guard offers proven engine protection for up to 10,000 miles

Anti-Drain Back Valve	No
Bypass Relief Valve	No
Filter Media Material	Cellulose/Synthetic Blend
Filter Type	Cartridge
Gasket Inside Diameter	1.142
Gasket Outside Diameter	1.378
Gasket Thickness	0.354
Gasket Type	Gasket
Grade	Advanced
Height	4.343
Housing Color	NA
Inside Diameter Bottom	1.125
Meets Or Exceeds Original Equipment Manufacturer Specifications	Yes
New Or Remanufactured	New
Non Slip Grip	No
O-Ring (1) Inside Diameter	0.177
O-Ring (1) Outside Diameter	0.236
O-Ring (1) Thickness	0.059
O-Ring Inside Diameter	3.563
O-Ring Outside Diameter	3.720
O-Ring Thickness	0.157
O-Rings Included	Yes
Outer Diameter Bottom	4.343
Outer Diameter Top	4.343
Replacable Filter	Yes
Reusable	No
Top Inside Diameter	1.125
Torque Nut	No
Washable	No
Washer (1) Inside Diameter	0.472
Washer (1) Outside Diameter	0.630
Washer (1) Thickness	0.039
Washer (2) Inside Diameter	0.394
Washer (2) Outside Diameter	0.551
Washer (2) Thickness	0.039
UPC	009100382580
Origin Country:	CN
Weight:	0.26Lb. (0.12 kg.)
Package Dimensions:	3.4" x 3.4" x 4.8" (8.6 cm x 8.6 cm x 12.2 cm)

1 Year Warranty

Fram CH5320 Engine Oil Filter

FRAM, CH5320, Oil Filter
