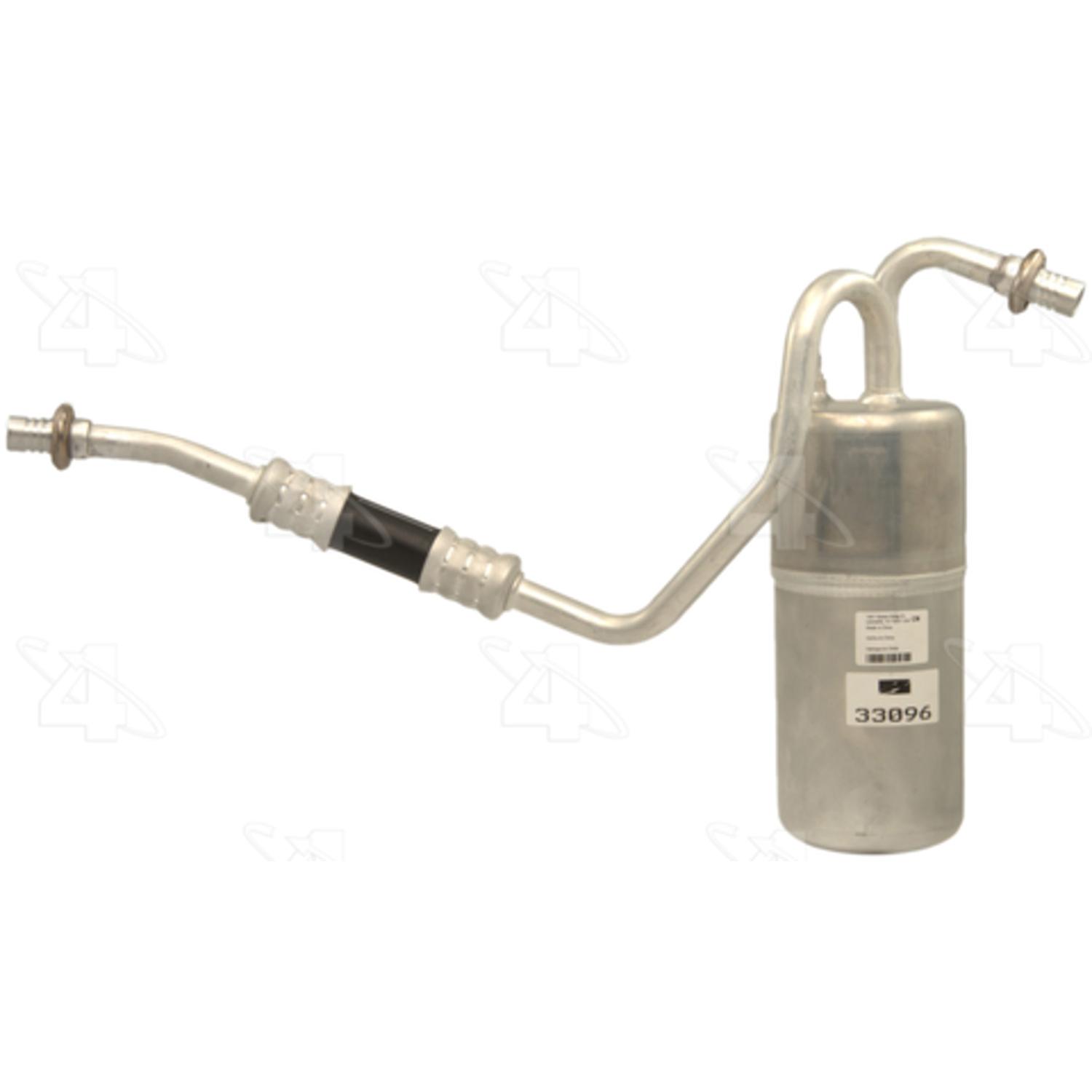

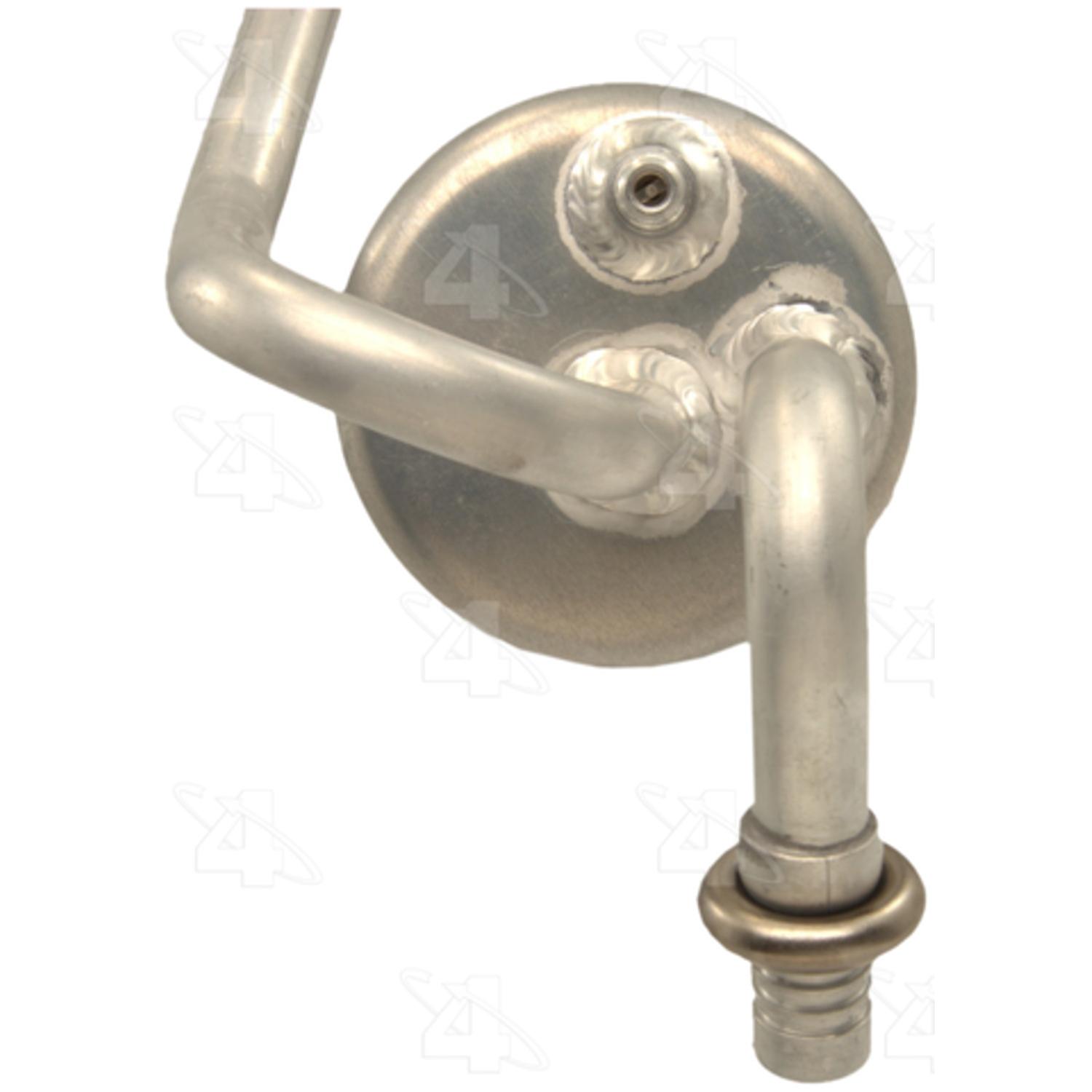

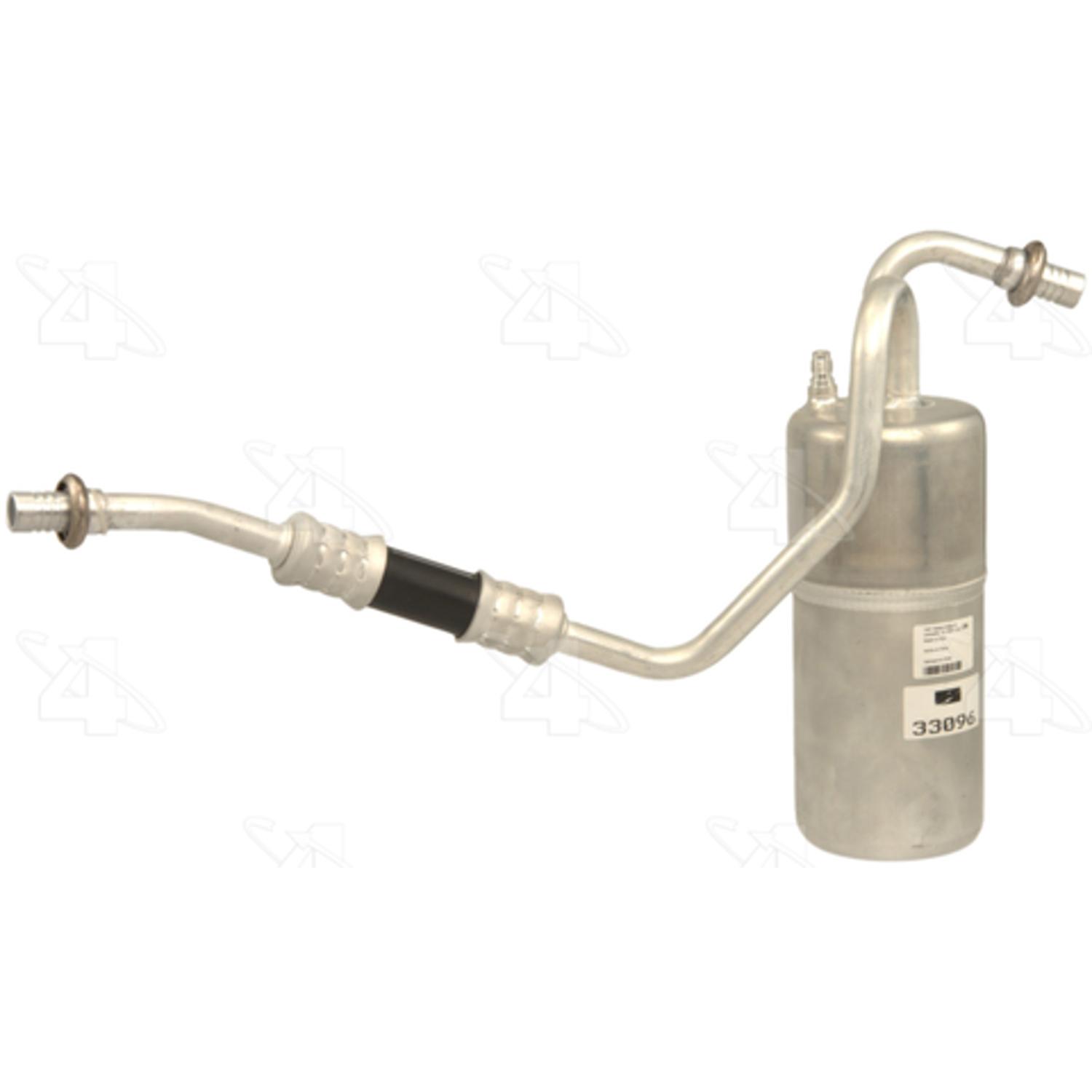

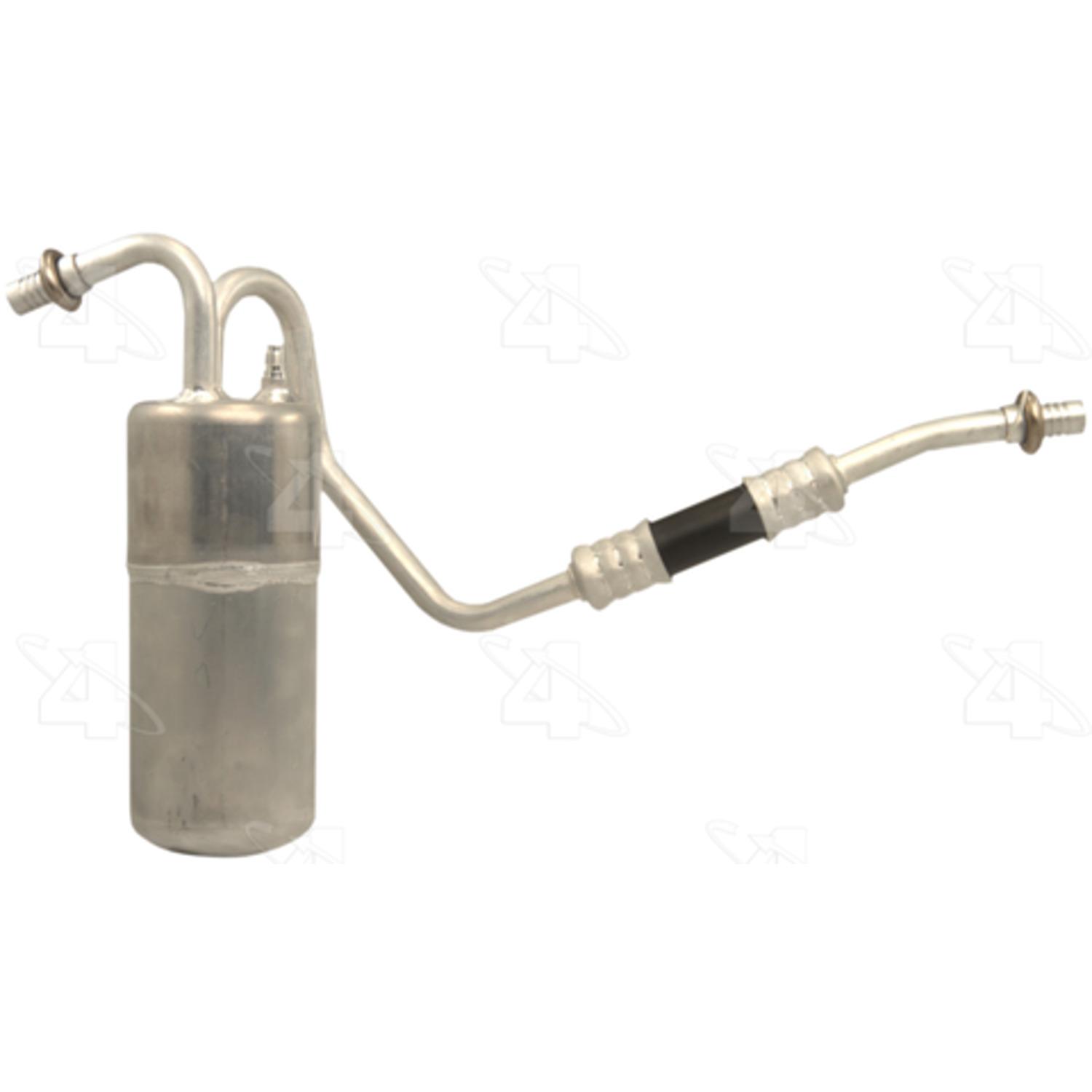

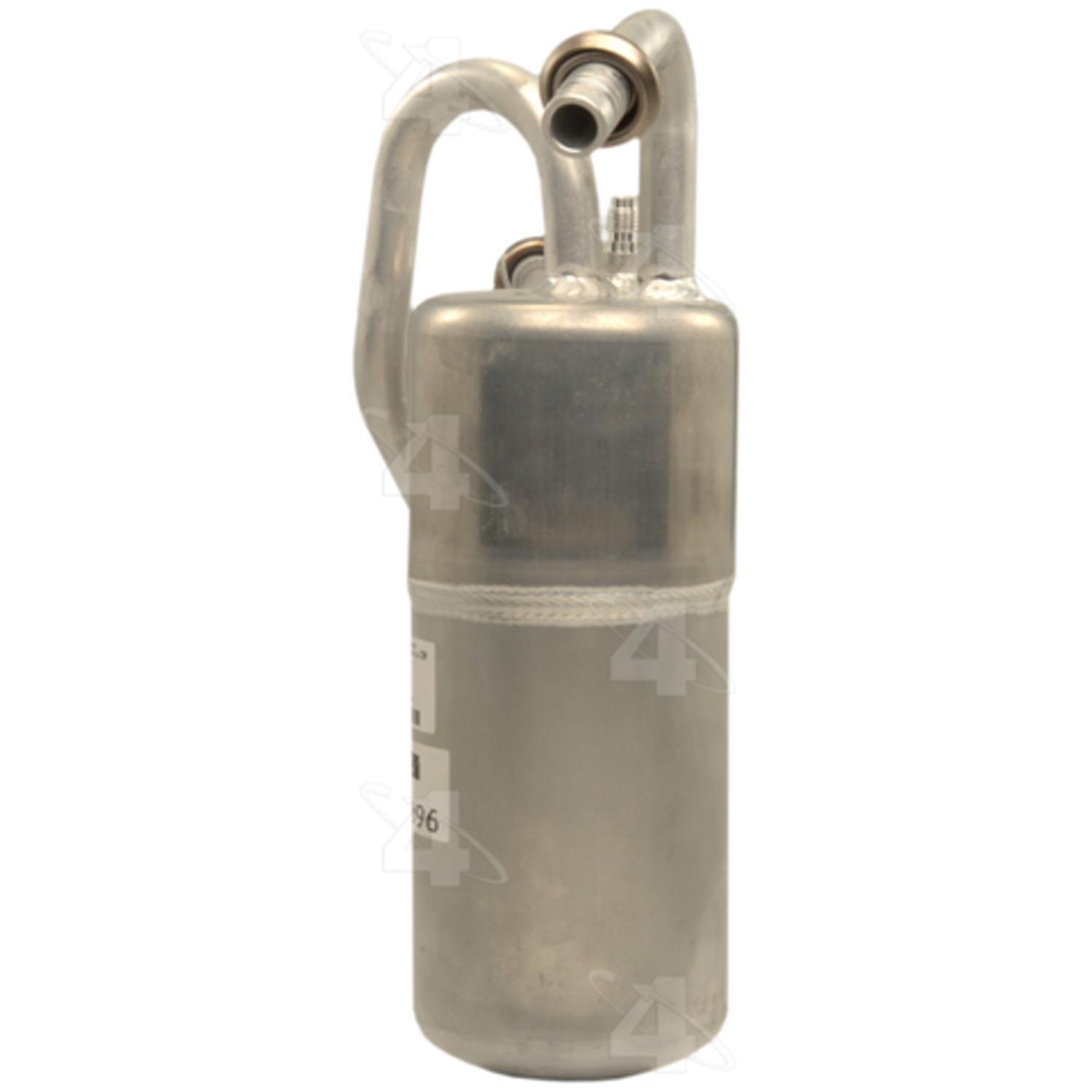

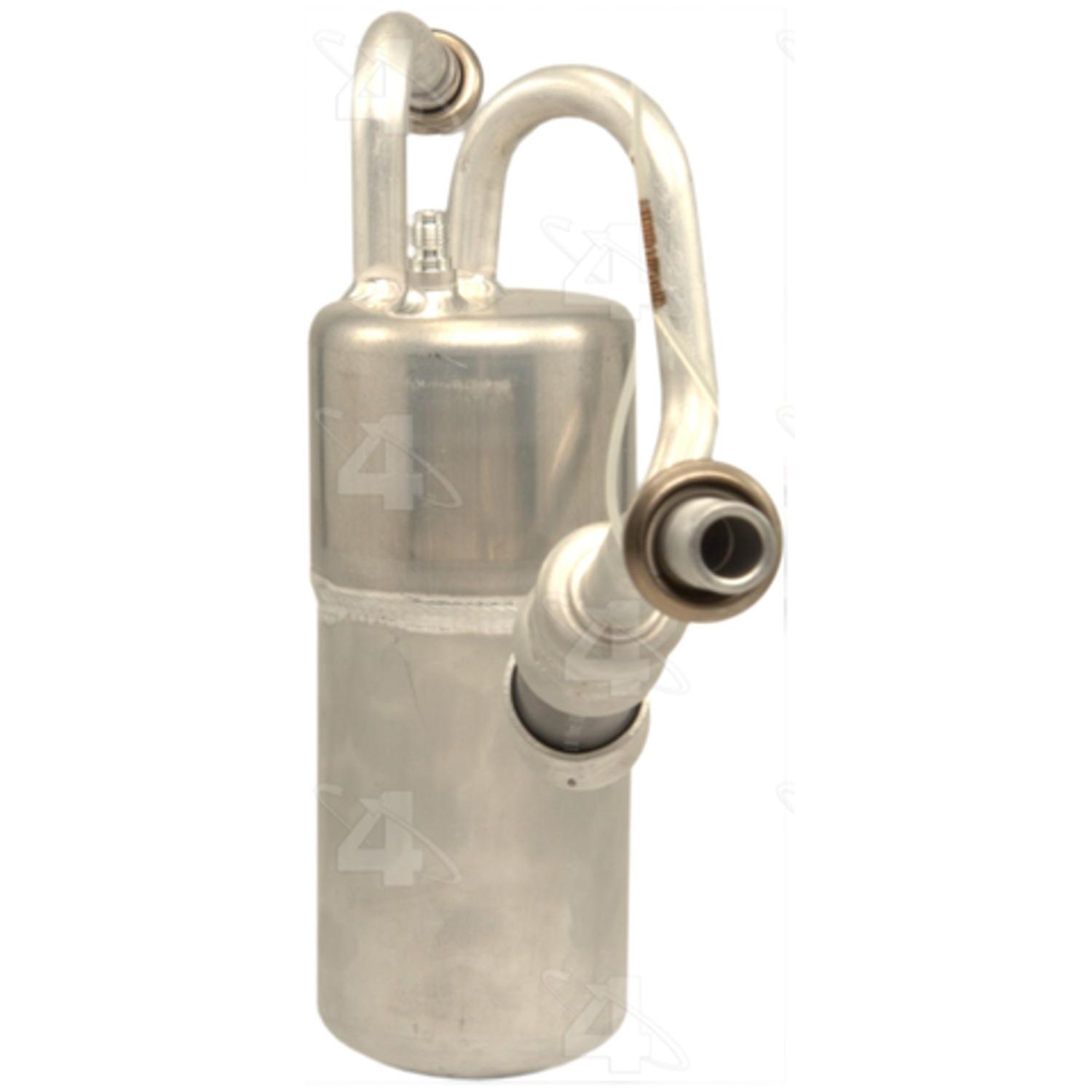

Four Seasons 33096 A/C Refrigerant Suction Hose in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Our accumulator / filter driers feature quality welds for a durable, leak-free design in addition to high-quality desiccant for appropriate absorption. For easy installation, necessary gaskets, o-rings and seal are included as well.
Replacement of the accumulator / filter drier is required to validate compressor warranty and must be replaced anytime the system is serviced.
The absorption of moisture in the system is done through the use of a desiccant bag. A leaking or "open" system can cause the bag to become saturated within a few hours making the accumulator/filter drier ineffective.
The accumulator / filter drier acts as a filter by removing moisture and contaminants from the air conditioning system. Such contaminants cannot be removed by flushing, therefore replacing the accumulator / filter drier is essential.
Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Four Seasons.
As a manufacturer in accumulator/filter driers, we offer quality units produced in a ISO/TS16949 & ISO14001 certified facility. State-of-the-art equipment and high quality materials ensure product integrity for long lasting performance.

Other Names: A/C Accumulator with Hose Assembly, A/C Refrigerant Suction Hose

Material	Aluminum
Type	w/ Hose
Inlet Type	Male Springlock
Outlet Type	Male Springlock
California Proposition 65	Warning: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.
Style	Suction Side
Description	Accumulator w/ Hose Assy
O-Ring A Number/Desc	24220 / Spring
O-Ring B Number/Desc	24670 / Green O-Ring
O-Ring A Quantity	1
O-Ring B Quantity	3
O-Ring C Quantity	2
O-Ring C Number/Desc	24650 / Green O-Ring
Service Port?	w/ Service Port
Switch Port?	w/ Switch Port
Meets / Exceeds OEM?	Yes
Length MM	228.6
Outlet MM	15.88
Outlet Fraction	5/8
Dia. MM	88.9
Switch Port Dia. IN	0.250
Inlet IN	0.625
Inlet MM	15.88
Switch Port Dia.MM	6.350
Outlet IN	0.625
Switch Qty.	1
Inlet Fraction	5/8
Suction End Type	Male Springlock
Manifold?	w/o Manifold
Muffler?	w/o Muffler
Bracket?	W/o Bracket
Dia. IN	3.500
Length IN	9.000
UPC	096361330962
Origin Country:	CN
Weight:	2.82Lb. (1.29 kg.)
Package Dimensions:	21.3" x 14.3" x 6.5" (54 cm x 36.2 cm x 16.5 cm)

1 Year Warranty

Four Seasons 33096 A/C Refrigerant Suction Hose
