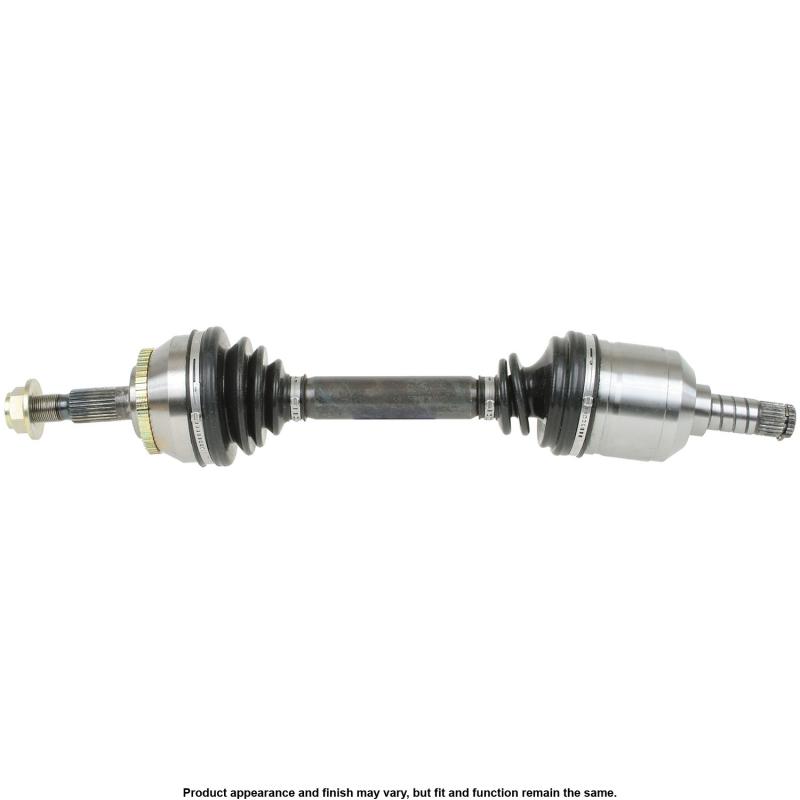

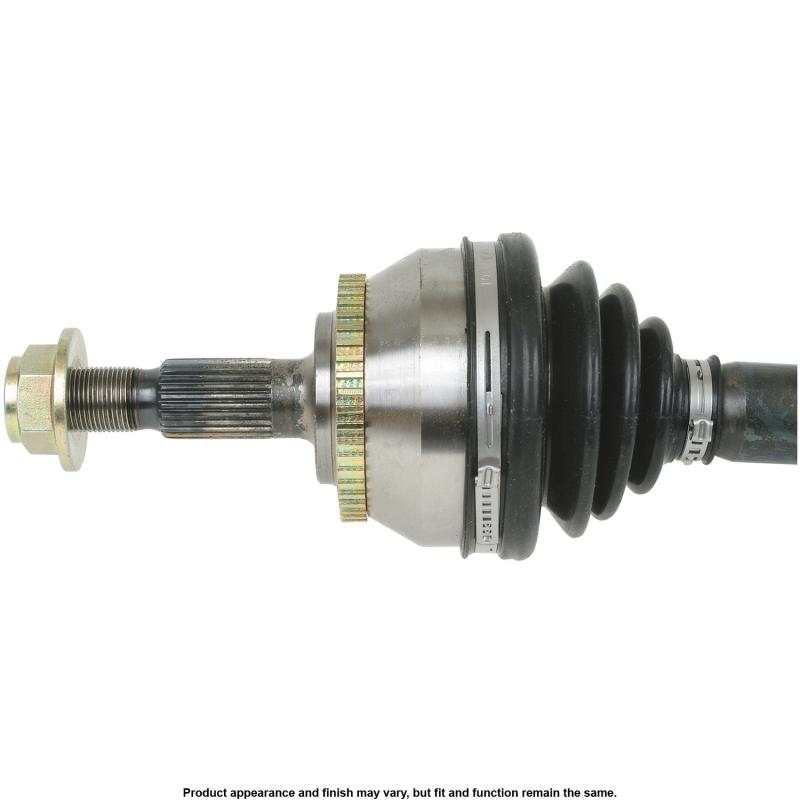

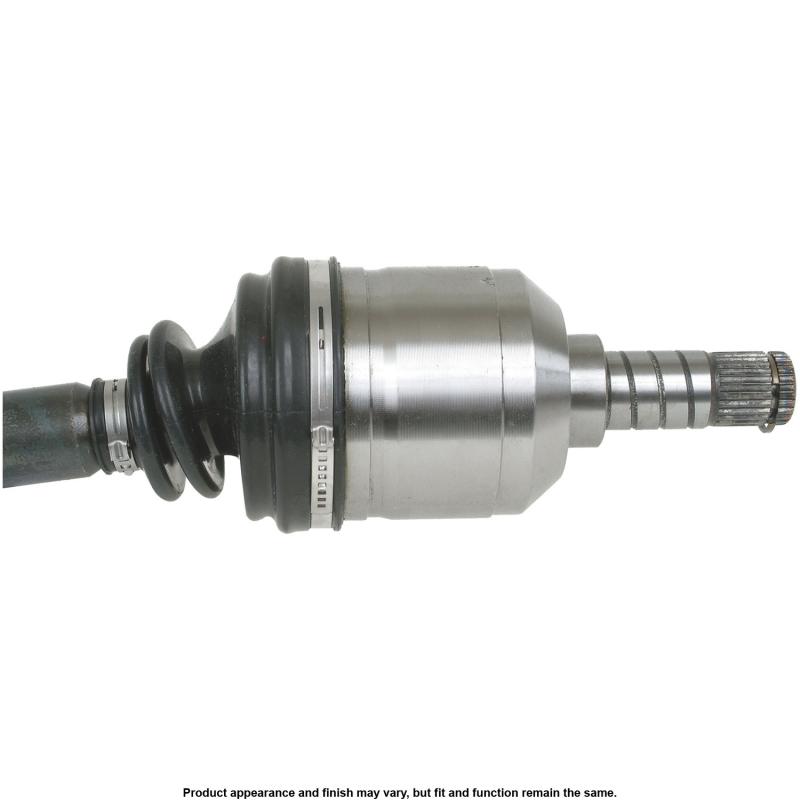

Name: Cardone Select 66-9208 CV Axle Shaft
Brand: Cardone Select
SKU: 669208
Price: 136.01 CAD
Availability: LimitedAvailability

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Volvo 5003845
Volvo 50038454
Volvo 5003847
Volvo 50038470
Volvo 8601096
Volvo 86010964
Volvo 8601098
Volvo 8601100
Volvo 86011004
Volvo 8601102
Volvo 8601462
Volvo 9122567
Volvo 91225672
Volvo 9122569
Volvo 86011020
Volvo 86014620
Volvo 86014628
Volvo 9122919
Volvo 91229195
Volvo 9122921

CARDONE's extensive experience in testing and engineering CV Drive Axles is the foundation behind our proprietary method of engineering a product that meets and even exceed O.E. performance. We have researched the reasons why original CVs typically fail and designed new solutions to avoid repeat failure. For example, our Neoprene boots are designed with additional bellows, when needed, to resist bellow stress and ozone cracking - the leading cause of boot failure. Additionally, all CV Drive Axle shafts are individually verified for straightness, resulting in vibration-free performance at all speeds.
A new axle retaining nut is supplied with every unit for a hassle-free installation, due to the likelihood that the original retaining nut is worn or stripped.
Boot clamps are pneumatically crimped, creating a perfect seal between the boot and housing.
CV Drive Axle measurements are validated after assembly to ensure a proper fit.
High-quality grease withstands high-temperature and high-torque demands to ensure long-lasting, reliable performance.
Neoprene boots are designed with additional bellows, when needed, to resist bellow stress and cracking, which is the leading cause of boot failure.
Proprietary engineering processes ensure that all CV Drive Axles meet O.E. form, fit and function.
Threads are precision rolled to ensure proper fit when axle nut is installed.
CV Drive Axle part numbers with an €œHD€ suffix are severe-duty applications and include a thermoplastic outboard boot for increased life and durability versus a traditional neoprene boot.
Splines are precision rolled to ensure proper fit of CV Drive Axle into the mating hub and transmission, which eliminates installation hassles.
Transmission seal diameter is precision-machined after heat treatment to ensure correct surface finish, promoting long seal life.

Other Names: CV Axle Assembly, CV Axle Shaft

Abs Ring Type	Toothed
Package Contents	Complete Axle; Instruction Sheet
Product Condition	New
E-Waste	No
Prop 65	No
SDS Required	No
Contains Electronic Components?	No
Is item a chemical?	No
Is or contains a battery?	No
Is or contains a bulb?	No
Is the item CARB affected?	No
FAQ_Q1	I installed a replacement CV drive axle and now my ABS light is on and won't go out. Why?
FAA_A1	When the replacement drive axle was installed, the sensor ring, sensor, or sensor wiring on or near the axle was damaged, causing an erratic speed signal to the ABS module and setting the light on.
FAQ_Q2	When I cut the wheel hard and step on the gas, I hear loud clicking and snapping. What's making that noise?
FAA_A2	The most likely cause is a defective or worn outer CV drive axle joint. It may be time to get it replaced.
FAQ_Q3	When I step on the gas, I hear a loud thump and feel a bad vibration. What's wrong?
FAA_A3	The most likely cause is the drive train shifting in the chassis due to a broken engine mount or hardware, causing misalignment of the CV drive axle and causing the inner joint to bind or hang up.
FAQ_Q4	I hear a grinding noise from the front end while driving and see grease on the chassis and suspension. What is causing this?
FAA_A4	The most likely problem is the outer CV drive axle boot has ruptured, causing the grease to leak out, allowing contamination (water and dirt) to enter and damage the joint.
FAQ_Q5	I removed both CV drive axles at the same time and now I am having problems reinstalling them. What can I do?
FAA_A5	The transaxle gear alignment has been lost. On some vehicles it will be necessary to disassemble the transaxle to properly align the output gears. ALWAYS remove and install one CV drive axle at a time.
FAQ_Q6	The old CV Drive Axle has a locking style (prevailing torque) nut. Should I reuse it?
FAA_A6	NO! A prevailing torque lock nut should never be reused. Always discard the old nut and install a new one.
FAQ_Q7	The CV Drive Axle outboard joint stub shaft is stuck in the hub assembly. What's the best way to remove it?
FAA_A7	Always use the proper press type tool to remove the old stub shaft. NEVER strike the outer joint stub shaft with a hammer. It will damage the unit and possibly do damage to the hub bearing assembly.
FAQ_Q8	Is it OK to use an impact hammer to install the retaining nut?
FAA_A8	Never use an impact wrench to install the retaining nut on the CV Drive Axle. Always use a torque wrench and torque the nut to manufacture's specifications.
FAQ_Q9	When I replace the CV drive axles, should I reuse the old seals?
FAA_A9	When replacing CV Drive Axle assemblies, always install new transaxle seals to avoid leaking.
FAQ_Q10	Can I let the CV Drive Axles hang while I am working on the car?
FAA_A10	Never allow the CV Drive Axles to hang unsupported. This can lead to axle separation and damage to the inner joint.
FAQ_Q11	The wheels wobble when I make a turn. What's the problem?
FAA_A11	The most likely cause is a broken bearing cage due to excessive torque load. This is typically an outboard joint problem.
UPC	082617635769
Origin Country:	CN
Weight:	18Lb. (8.19 kg.)
Package Dimensions:	29.5" x 5" x 5" (74.9 cm x 12.7 cm x 12.7 cm)

1 Year Warranty

Cardone Select 66-9208 CV Axle Shaft

New CV Axle Assembly
