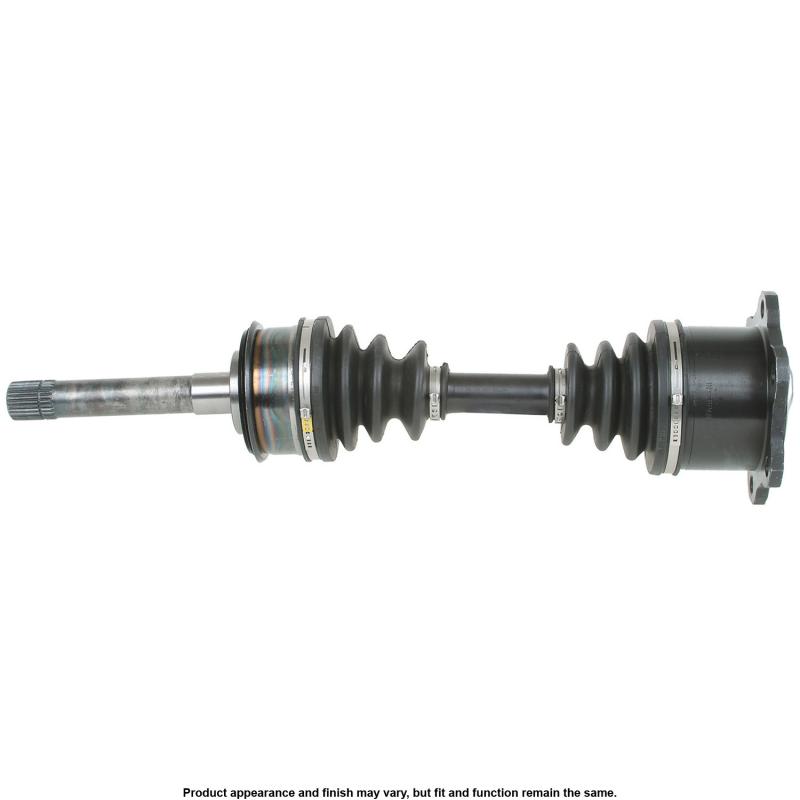

Cardone Select 66-5009 CV Axle Shaft
New CV Axle Assembly
(Product has different names depending on vehicle application)
$205.59$128.52 CAD
Limited Stock
Ships: Monday Oct. 6th
Pick-Up: Ready in 1 Hour (Order before 12:00 PM)
Brand: Cardone Select
Stock #: 665009
Condition: New
UPC: 082617633932
Weight: 21.5 lb.(9.78 kg.)
Dimensions: 29.5" x 6.4" x 6.4" (74.9 cm x 16.2 cm x 16.2 cm)
Accepted Payments: Visa, MasterCard, PayPal
Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.
- Toyota 4343035011
- Toyota 4343035020
- CARDONE's extensive experience in testing and engineering CV Drive Axles is the foundation behind our proprietary method of engineering a product that meets and even exceed O.E. performance. We have researched the reasons why original CVs typically fail and designed new solutions to avoid repeat failure. For example, our Neoprene boots are designed with additional bellows, when needed, to resist bellow stress and ozone cracking - the leading cause of boot failure. Additionally, all CV Drive Axle shafts are individually verified for straightness, resulting in vibration-free performance at all speeds.
- A new axle retaining nut is supplied with every unit for a hassle-free installation, due to the likelihood that the original retaining nut is worn or stripped.
- Boot clamps are pneumatically crimped, creating a perfect seal between the boot and housing.
- CV Drive Axle measurements are validated after assembly to ensure a proper fit.
- High-quality grease withstands high-temperature and high-torque demands to ensure long-lasting, reliable performance.
- Neoprene boots are designed with additional bellows, when needed, to resist bellow stress and cracking, which is the leading cause of boot failure.
- Proprietary engineering processes ensure that all CV Drive Axles meet O.E. form, fit and function.
- Threads are precision rolled to ensure proper fit when axle nut is installed.
- CV Drive Axle part numbers with an €œHD€ suffix are severe-duty applications and include a thermoplastic outboard boot for increased life and durability versus a traditional neoprene boot.
- Splines are precision rolled to ensure proper fit of CV Drive Axle into the mating hub and transmission, which eliminates installation hassles.
- Transmission seal diameter is precision-machined after heat treatment to ensure correct surface finish, promoting long seal life.
- Other Names: CV Axle Assembly, CV Axle Shaft
| Package Contents | Complete Axle; Instruction Sheet |
| Product Condition | New |
| E-Waste | No |
| Prop 65 | No |
| SDS Required | No |
| Contains Electronic Components? | No |
| Is item a chemical? | No |
| Is or contains a battery? | No |
| Is or contains a bulb? | No |
| Is the item CARB affected? | No |
| FAQ_Q1 | I installed a replacement CV drive axle and now my ABS light is on and won't go out. Why? |
| FAA_A1 | When the replacement drive axle was installed, the sensor ring, sensor, or sensor wiring on or near the axle was damaged, causing an erratic speed signal to the ABS module and setting the light on. |
| FAQ_Q2 | When I cut the wheel hard and step on the gas, I hear loud clicking and snapping. What's making that noise? |
| FAA_A2 | The most likely cause is a defective or worn outer CV drive axle joint. It may be time to get it replaced. |
| FAQ_Q3 | When I step on the gas, I hear a loud thump and feel a bad vibration. What's wrong? |
| FAA_A3 | The most likely cause is the drive train shifting in the chassis due to a broken engine mount or hardware, causing misalignment of the CV drive axle and causing the inner joint to bind or hang up. |
| FAQ_Q4 | I hear a grinding noise from the front end while driving and see grease on the chassis and suspension. What is causing this? |
| FAA_A4 | The most likely problem is the outer CV drive axle boot has ruptured, causing the grease to leak out, allowing contamination (water and dirt) to enter and damage the joint. |
| FAQ_Q5 | I removed both CV drive axles at the same time and now I am having problems reinstalling them. What can I do? |
| FAA_A5 | The transaxle gear alignment has been lost. On some vehicles it will be necessary to disassemble the transaxle to properly align the output gears. ALWAYS remove and install one CV drive axle at a time. |
| FAQ_Q6 | The old CV Drive Axle has a locking style (prevailing torque) nut. Should I reuse it? |
| FAA_A6 | NO! A prevailing torque lock nut should never be reused. Always discard the old nut and install a new one. |
| FAQ_Q7 | The CV Drive Axle outboard joint stub shaft is stuck in the hub assembly. What's the best way to remove it? |
| FAA_A7 | Always use the proper press type tool to remove the old stub shaft. NEVER strike the outer joint stub shaft with a hammer. It will damage the unit and possibly do damage to the hub bearing assembly. |
| FAQ_Q8 | Is it OK to use an impact hammer to install the retaining nut? |
| FAA_A8 | Never use an impact wrench to install the retaining nut on the CV Drive Axle. Always use a torque wrench and torque the nut to manufacture's specifications. |
| FAQ_Q9 | When I replace the CV drive axles, should I reuse the old seals? |
| FAA_A9 | When replacing CV Drive Axle assemblies, always install new transaxle seals to avoid leaking. |
| FAQ_Q10 | Can I let the CV Drive Axles hang while I am working on the car? |
| FAA_A10 | Never allow the CV Drive Axles to hang unsupported. This can lead to axle separation and damage to the inner joint. |
| FAQ_Q11 | The wheels wobble when I make a turn. What's the problem? |
| FAA_A11 | The most likely cause is a broken bearing cage due to excessive torque load. This is typically an outboard joint problem. |
| UPC | 082617633932 |
| Origin Country: | CN |
| Weight: | 21.5Lb. (9.78 kg.) |
| Package Dimensions: | 29.5" x 6.4" x 6.4" (74.9 cm x 16.2 cm x 16.2 cm) |
1 Year Warranty
