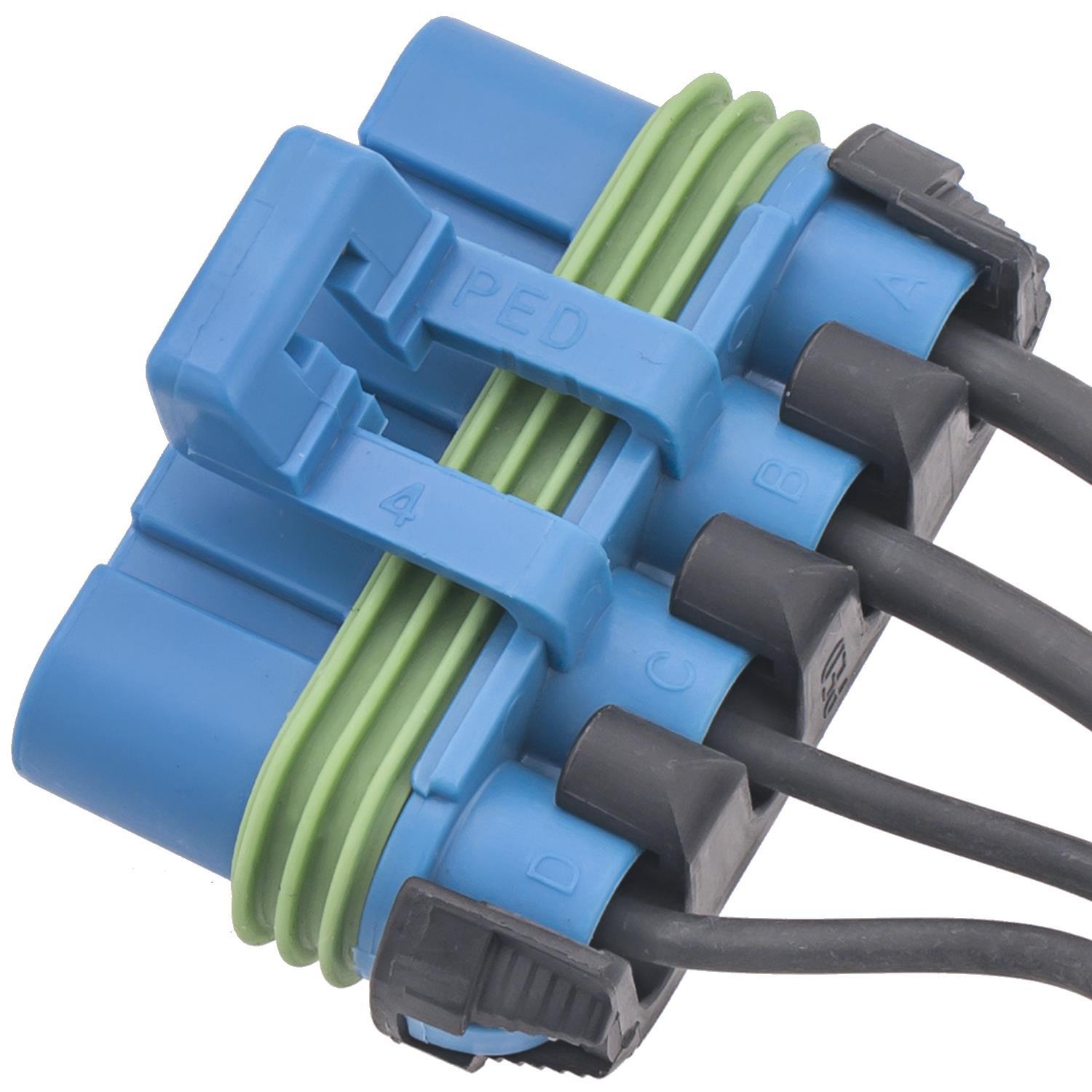

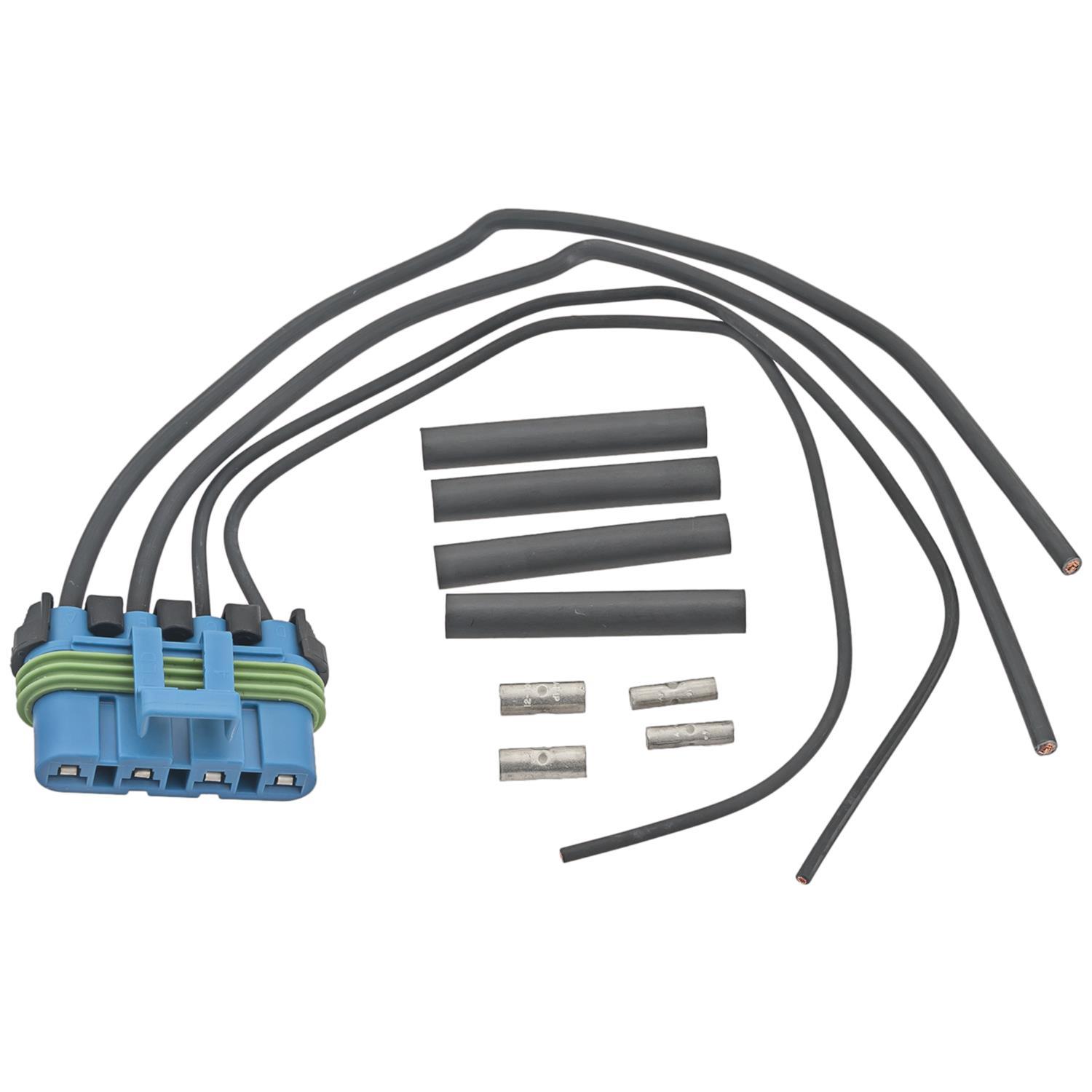

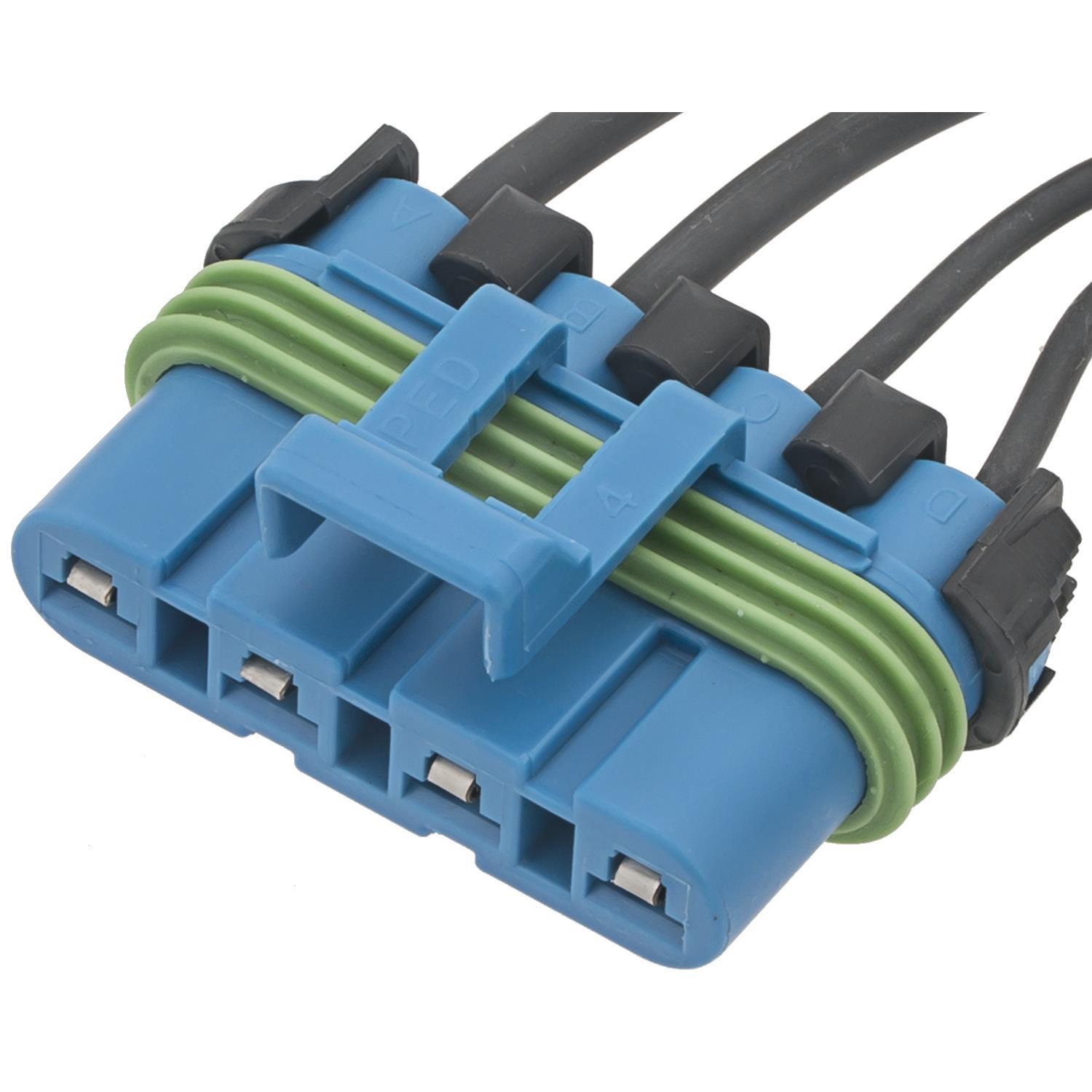

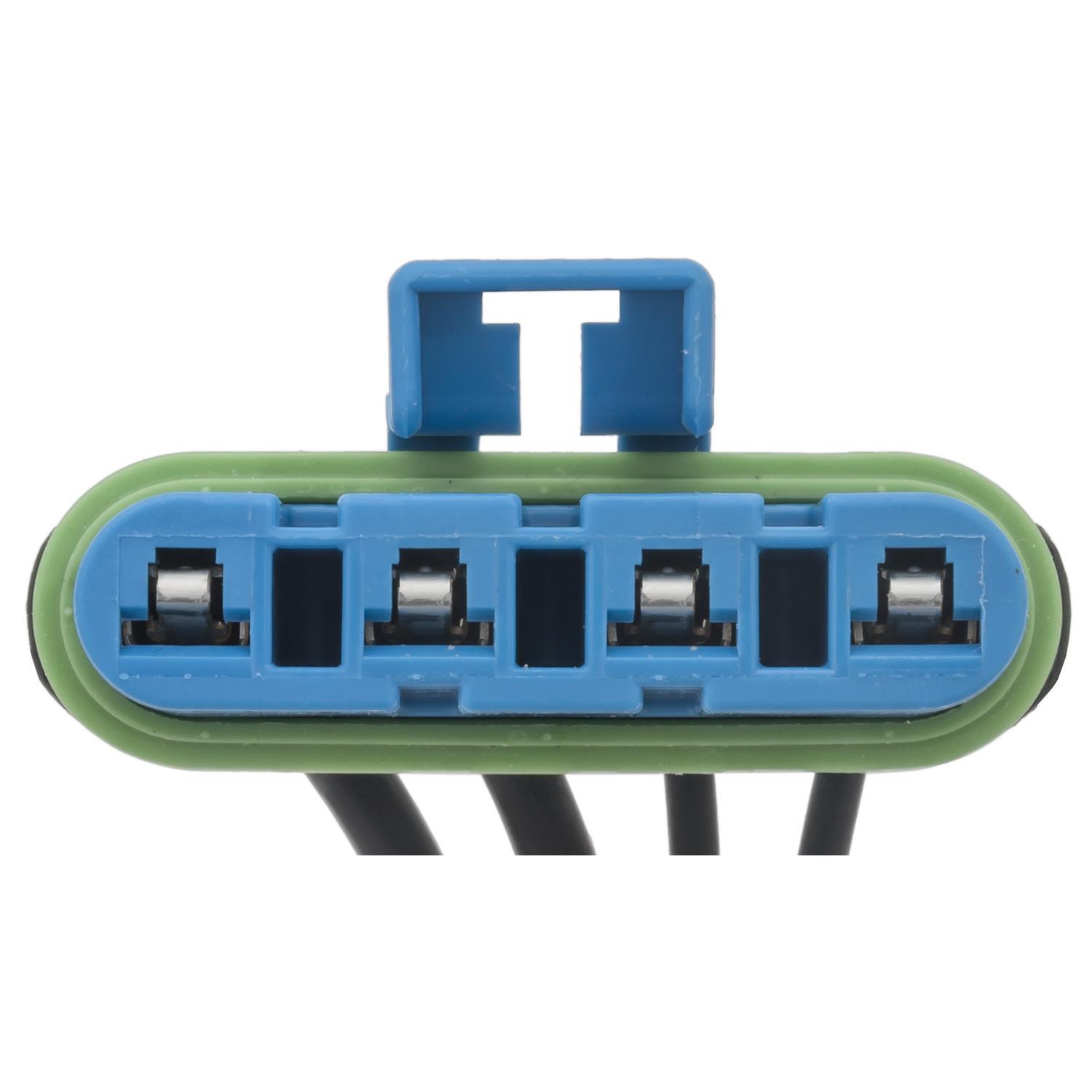

BWD PT2324 A/C Compressor Cut-Out Switch Harness Connector in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function.
Each part has high-quality direct replacement electrical connector that eliminates the need for a harness, replacing only the damaged connector, for a cost effective repair solution
Protective Tubing Included
The Housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance in harsh environments.
The terminals are manufactured with high grade materials such as copper alloy, brass, and phosphor bronze.

Other Names: A/C Compressor Cut-Out Switch Harness Connector, ABS Relay Connector, Active Suspension Relay Connector, Load Leveler Relay Connector, Multi Purpose Connector, Secondary Air Injection Pump Relay Connector, Secondary Air Injection Relay Connector, Twilight Sentinel Switch Connector

Connector Gender	Male
Terminal Quantity	4
Terminal Type	Blade
Attachment Method	Push On
Connector Quantity	1
Connector Shape	Oval
Terminal Gender	Female
Material	Plastic
Wiring Harness Included	Yes
Wire Quantity	4
Water Resistant	Yes
Wiring Harness Length (in)	12
Wiring Harness Length (mm)	304.8
Dust Shield Included	No
Length - Inches	1.25
Contact Terminal Material	Metal
Number of wires	4
Bend Angle (Deg.)	0
Number Of Splice Connectors Includ	4
Splice Connectors Included	Yes
Weatherproof Sealed	Yes
Wire Gauge (ga)	12, 16
UPC	033086477770
Origin Country:	MX
Weight:	0.2Lb. (0.09 kg.)
Package Dimensions:	1.5" x 1.5" x 6.5" (3.8 cm x 3.8 cm x 16.5 cm)

1 Year Warranty

BWD PT2324 A/C Compressor Cut-Out Switch Harness Connector
