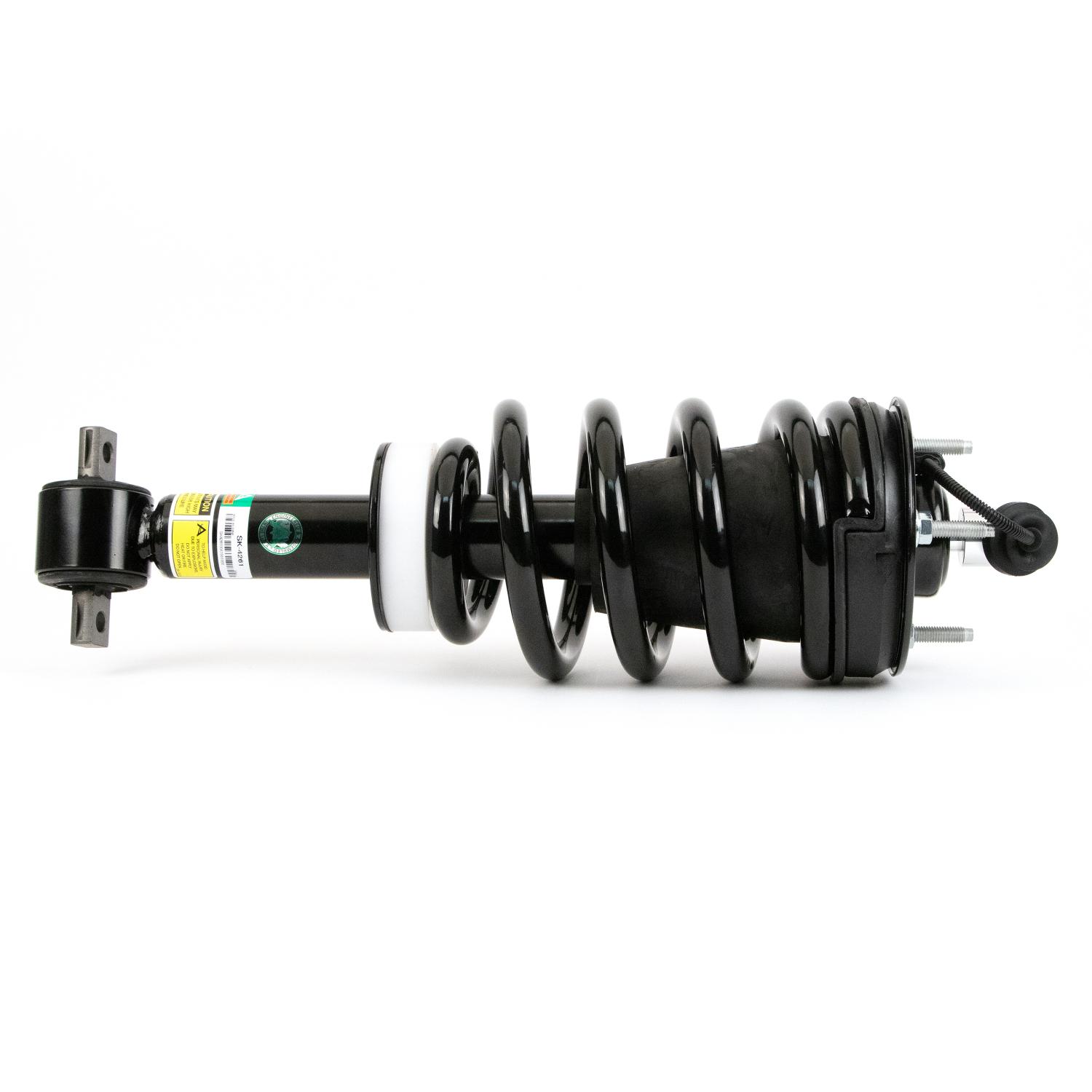

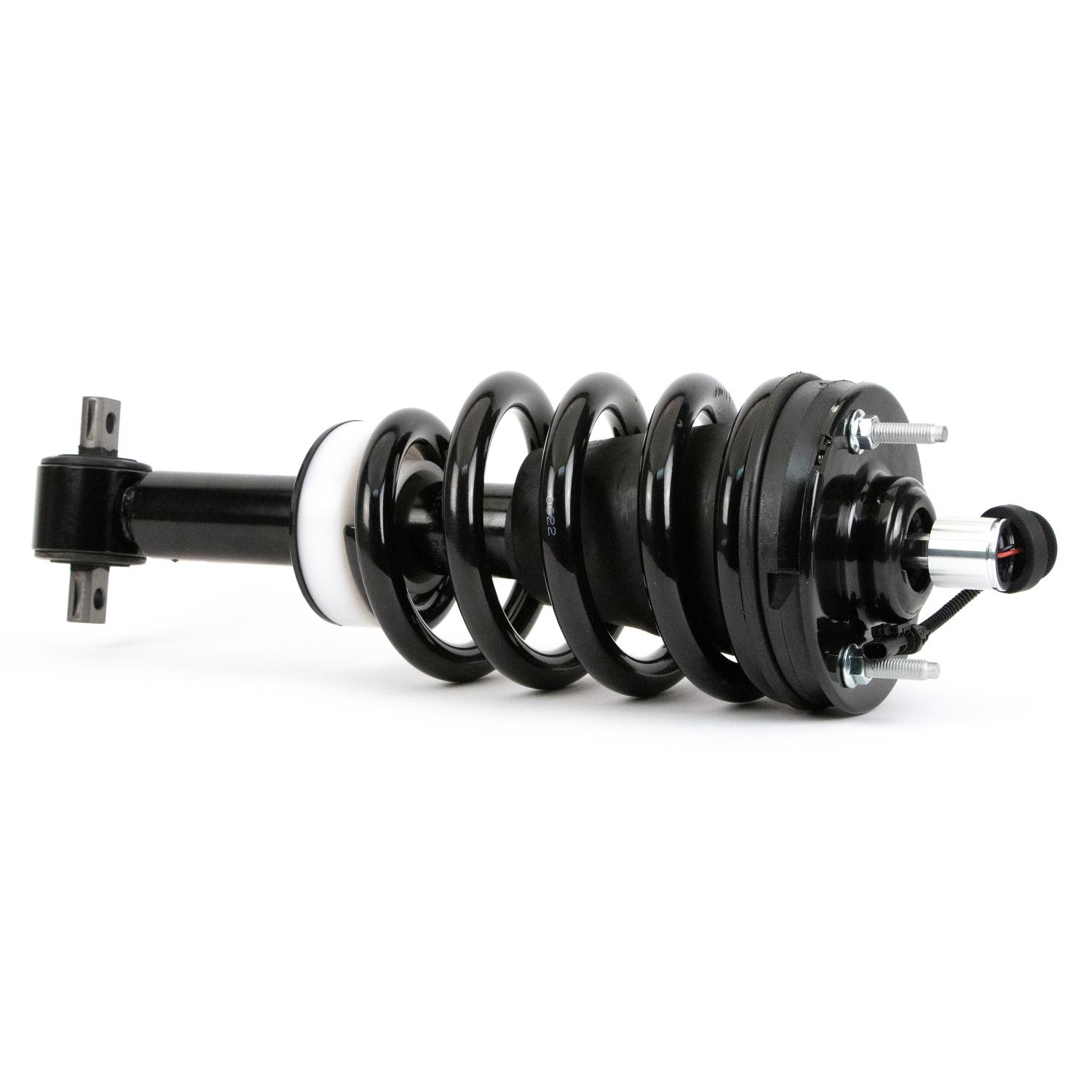

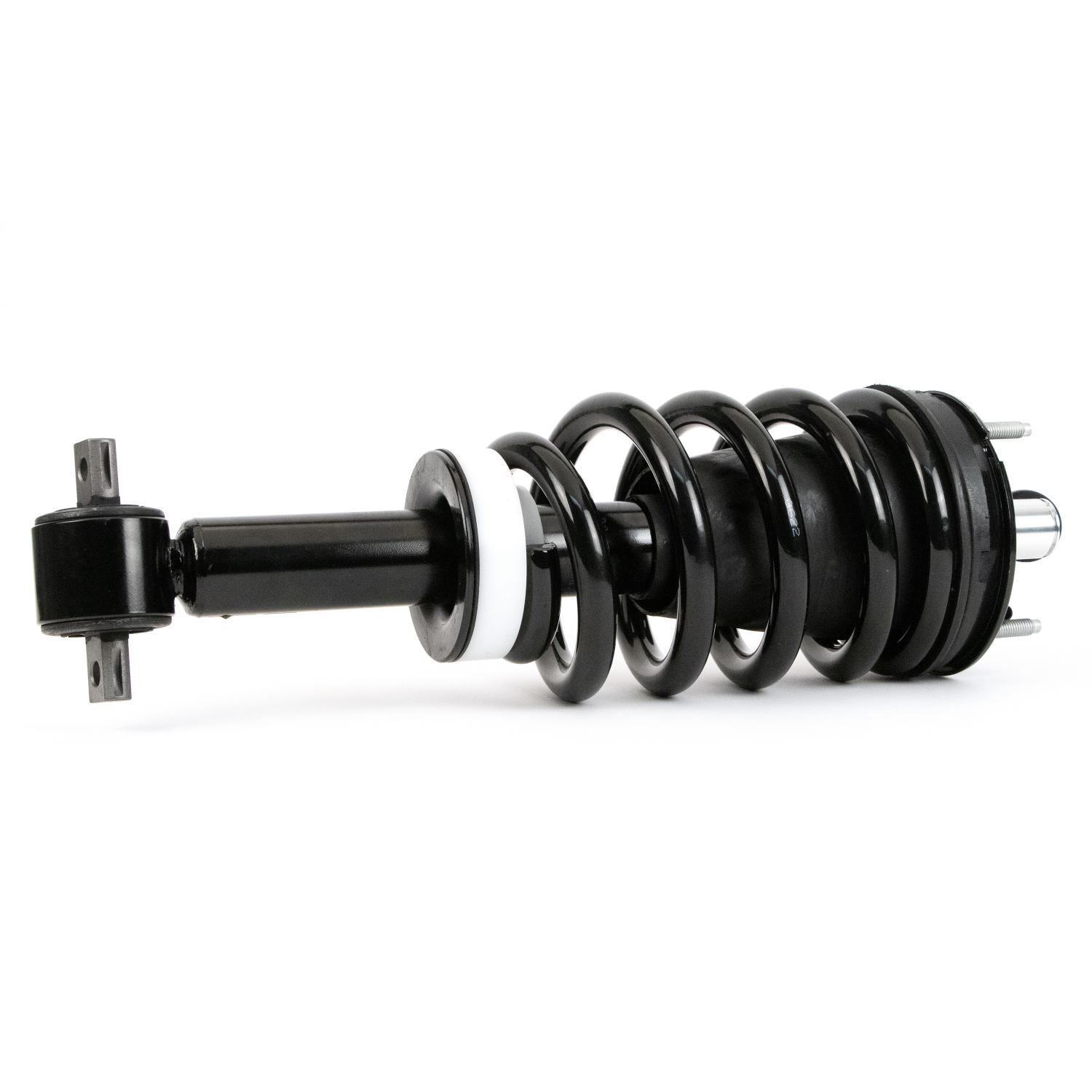

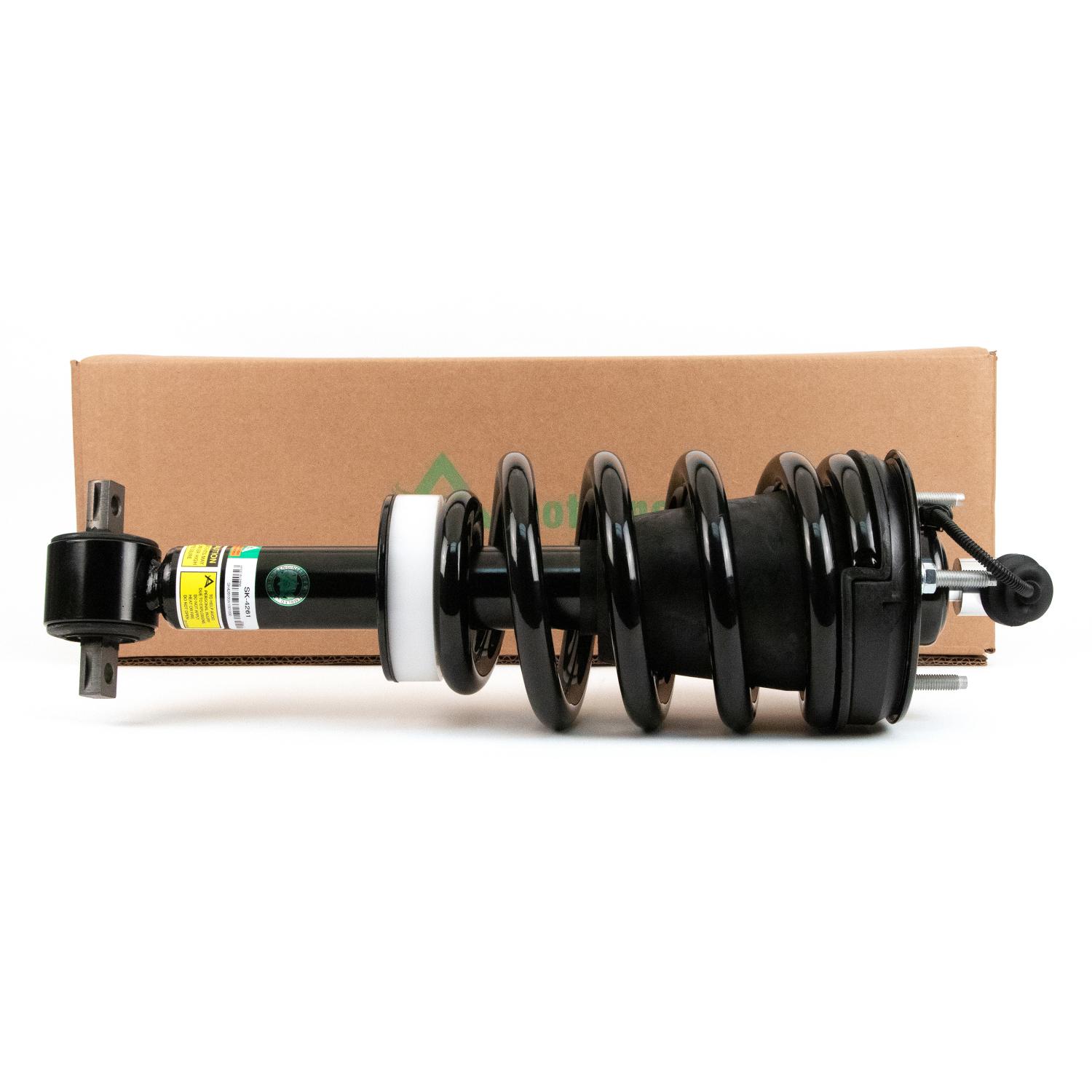

Arnott SK-4261 Suspension Strut and Coil Spring Assembly in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

New Spring Seat, Isolator and Mounting Hardware
Pre-assembled with a new steel coil spring
Custom-tuned damper calibrated to provide a smooth yet responsive ride
For vehicles w/RPO code Z95
Provide proper vehicle ride height when additional weight is loaded
Exclusively for GM Pickup Trucks & SUVs (LWB, GMTK2xx)
Converts active to passive
Replace in Pairs
Arnott€™s completely new coil over struts are built from the ground up with quality components including custom-valved internal shocks and new steel coils. This Arnott shock is specially designed for Pick Up Trucks and Long Wheelbase SUV€™s. It is engineered in the USA and includes a passive damper which has been custom tuned to deliver control, stability, and comfort. These coil over struts are engineered and rigorously tested on dyno machines and then driven countless miles on Arnott€™s fleet of test cars. Arnott-designed struts are an excellent passive alternative for aging air or electronic suspension systems restoring comfort by replacing the OE shock with a completely new custom-valved coil over strut to provide a great ride. Note: Includes spac

Grade Type	Standard
Housing Material	Steel
Mounting Hardware Included	Yes
Bearing Plate Included	Yes
Lower Mounting Isolator Included	Yes
Upper Mounting Isolator Included	Yes
Lower Mount Type	Cross Pin
Upper Mount Type	Bolt
Adjustable	No
Gas Charged	Yes
Shock Spring Assisted	Yes
Boot Included	Yes
Compressed Length	312.928
Body Diameter	50.038
Boot Color	Black
Shock Absorber Rod End Measuring Point	Shoulder of Stud
Spring Isolators Included	Yes
Spring Rate Type	Linear
New Or Remanufactured	New
Extended Length	452.12
Dust Shield Included	Yes
Dust Shield Material	Rubber
Travel Length	139.192
Springs Included	Yes
Progressive Spring Rate	No
Spring Seat Included	Yes
Coil Over Springs Included	Yes
Adjustable Damping	No
Internal Construction Type	Twin-Tube
Heavy Duty Crimping Rings	No
Internal Damper Type	Hydraulic
Protective Aluminum Can	No
Air Adjustable	No
Air Bladder	No
Air Bladder Material	No
Air Ride Suspension	No
Body End Measuring Point	Center Eye
Adjustable Rebound	No
Active or Passive Suspension	Passive
Bladder(s) Included	No
Bladder Heavy Duty Crimping Rings Included	No
Bladder Sleeve(s) Included	No
Adjustable Compression	No
Adjustable Ride Height	No
Coil Spring Included	Yes
Outer Housing Diameter	50.038
Shock/strut Color	Black
UPC	00815710028301
Origin Country:	CN
Weight:	27.35Lb. (12.43 kg.)
Package Dimensions:	25.5" x 7.5" x 9" (64.8 cm x 19.1 cm x 22.9 cm)

2 Year Warranty - (Air Compressors 2 Years)

Arnott SK-4261 Suspension Strut and Coil Spring Assembly
