Arnott SK-4023 Suspension Strut in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Designed & Assembled in the USA
Exclusively for Land Rover Range Rover Velar (L560) with Coil Suspenson
Fits FRONT RIGHT or LEFT
NOTE: Spring seat should be reused from original assembly
Replace in Pairs
Tested extensively to ensure proper functionality and longevity

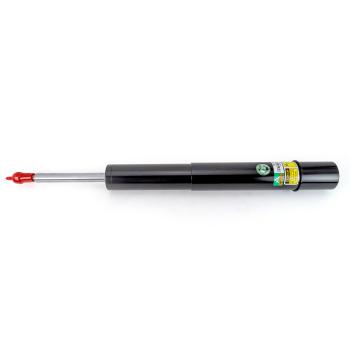

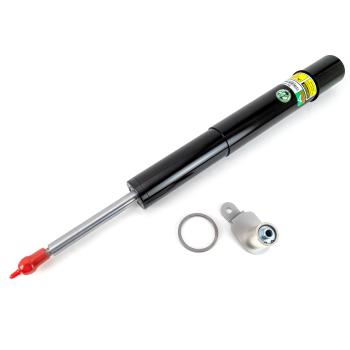

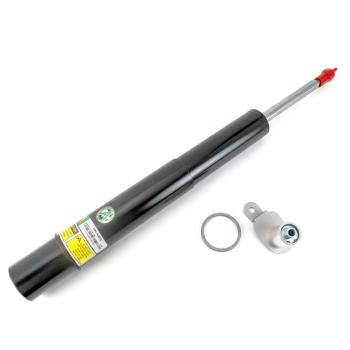

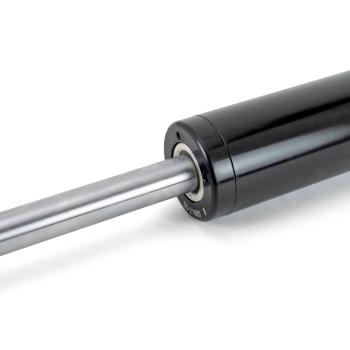

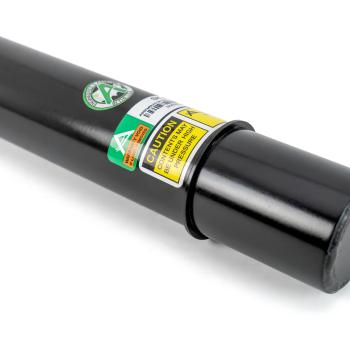

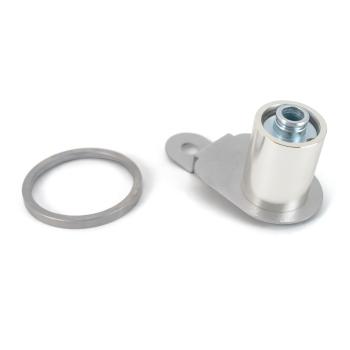

Arnott engineered new aftermarket suspension strut for the front right or left side of the 2018-2020 Land Rover Velar (L560) with CVD. This assembly replaces the OE strut and features a new custom tuned shock absorber to provide an excellent ride and outstanding performance. The Arnott strut is assembled in the USA with Tier 1 air spring sleeve protected by an aluminum can along with an aluminum top mount. The new strut is assembled in the USA with Arnott's long-lasting seals, O-ring and bump stop.

Grade Type	Standard
Mounting Hardware Included	No
Body Color	N/A
Bearing Plate Included	N/A
Lower Mounting Isolator Included	No
Upper Mounting Isolator Included	No
Lower Mount Type	Special
Upper Mount Type	Special
Adjustable	No
Gas Charged	Yes
Shock Spring Assisted	No
Boot Included	No
Compressed Length	436.9
Boot Color	N/A
Shock Absorber Rod End Measuring Point	N/A
Spring Isolators Included	No
Spring Rate Type	Linear
New Or Remanufactured	New
Extended Length	561.3
Dust Shield Included	No
Travel Length	126.4
Springs Included	No
Progressive Spring Rate	N/A
Spring Seat Included	No
Coil Over Springs Included	No
Adjustable Damping	No
Internal Construction Type	Monotube
Heavy Duty Crimping Rings	N/A
Protective Aluminum Can	No
Air Adjustable	No
Air Bladder	No
Air Bladder Material	N/A
Air Ride Suspension	No
Body End Measuring Point	Center Eye
Adjustable Rebound	No
Active or Passive Suspension	Passive
Adjustable Compression	No
Adjustable Ride Height	No
Shock/strut Color	Black
UPC	00815710025911
Origin Country:	US
Package Dimensions:	32.3" x 6.5" x 7.2" (82 cm x 16.5 cm x 18.3 cm)

2 Year Warranty - (Air Compressors 2 Years)
