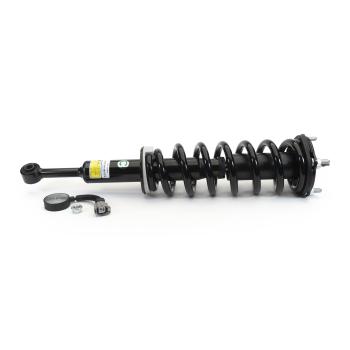

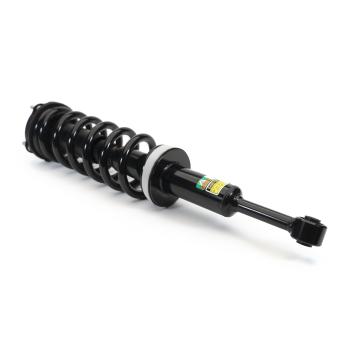

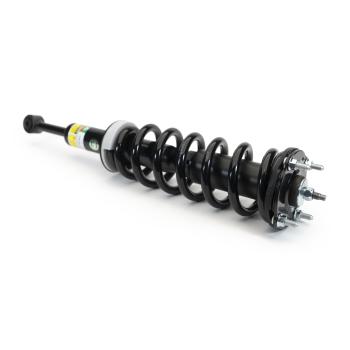

Arnott SK-3794 Suspension Strut and Coil Spring Assembly in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Custom-valved strut, adapted to driving style
Engineered and Assembled in the USA
Improved, leak preventing seals
Arnott€™s completely new coil over struts are built from the ground up with quality components including custom-valved internal shocks and new steel coils. These coil over struts are engineered and rigorously tested on dyno machines and then driven countless miles on Arnott€™s fleet of test cars. Arnott-designed struts are an excellent passive alternative for aging air or electronic suspension systems restoring comfort by replacing the OE shock with a completely new custom-valved coil over strut to provide a great ride.
Exclusively for Toyota Sequoia (XK60)
Fits FRONT RIGHT
Converts active to passive
Replace in Pairs

Grade Type	Standard
Housing Material	Steel
Mounting Hardware Included	Yes
Bearing Plate Included	No
Lower Mounting Isolator Included	Yes
Upper Mounting Isolator Included	Yes
Lower Mount Type	Loop/Eyelet
Upper Mount Type	Stud
Adjustable	No
Gas Charged	Yes
Shock Spring Assisted	Yes
Boot Included	Yes
Compressed Length	449
Body Diameter	52
Boot Color	Black
Shock Absorber Rod End Measuring Point	Shoulder of Stud
Spring Isolators Included	Yes
Spring Rate Type	Linear
New Or Remanufactured	New
Extended Length	569
Dust Shield Included	Yes
Dust Shield Material	Rubber
Travel Length	120
Springs Included	Yes
Progressive Spring Rate	No
Spring Seat Included	Yes
Coil Over Springs Included	Yes
Adjustable Damping	No
Internal Construction Type	Twin-Tube
Heavy Duty Crimping Rings	No
Internal Damper Type	Hydraulic
Protective Aluminum Can	No
Air Adjustable	No
Air Bladder	No
Air Bladder Material	No
Air Ride Suspension	No
Body End Measuring Point	Center Eye
Adjustable Rebound	No
Active or Passive Suspension	Passive
Bladder(s) Included	No
Bladder Heavy Duty Crimping Rings Included	No
Bladder Sleeve(s) Included	No
Adjustable Compression	No
Adjustable Ride Height	No
Coil Spring Included	Yes
Outer Housing Diameter	52
Shock/strut Color	Black
UPC	00815710023610
Origin Country:	CN
Package Dimensions:	30.3" x 7.5" x 8.3" (76.8 cm x 19.1 cm x 21 cm)

2 Year Warranty - (Air Compressors 2 Years)
