Arnott SK-3598 Suspension Strut and Coil Spring Assembly in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

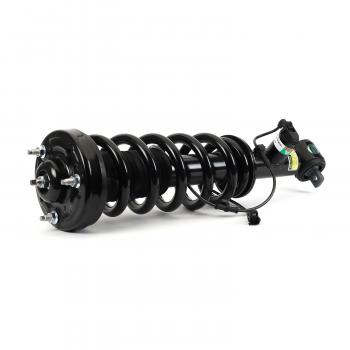

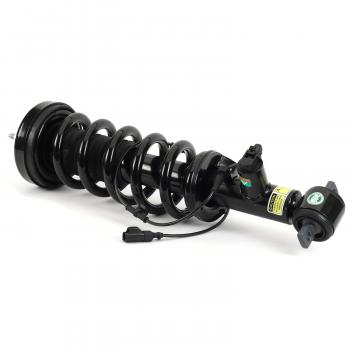

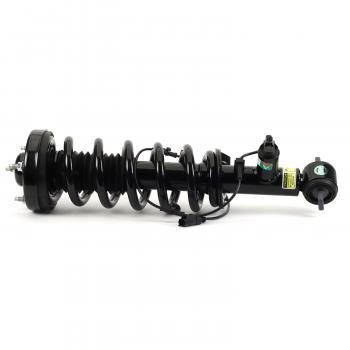

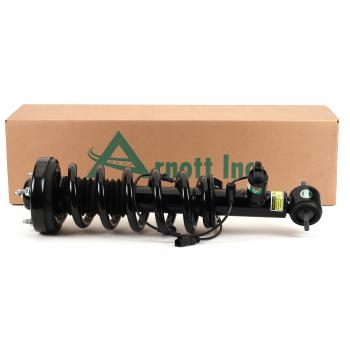

Arnott's exclusive strut (SK-3598) manufactured for the 2015-2017 Lincoln Navigator (U326) and Ford Expedition (U324) front left side. This passive strut design delivers the stability, handling, control and comfort of the original OE strut without any external commands from the vehicle. Arnott engineers have determined and tested the optimal internal strut settings to mimic the OE performance. Arnott recommends replacing these struts in pairs.
Custom-valved shock adapted to driving style
Electronic to passive shock technology
Engineered and Assembled in the USA
Improved seals to prevent leaks
Converts active to passive
Replace in Pairs

Grade Type	Standard
Housing Material	Steel
Mounting Hardware Included	Yes
Bearing Plate Included	Yes
Lower Mounting Isolator Included	Yes
Upper Mounting Isolator Included	Yes
Lower Mount Type	Cross Pin
Upper Mount Type	Bolt
Adjustable	No
Gas Charged	Yes
Shock Spring Assisted	Yes
Boot Included	Yes
Compressed Length	410
Body Diameter	70
Boot Color	Black
Shock Absorber Rod End Measuring Point	Shoulder of Stud
Spring Isolators Included	Yes
Spring Rate Type	Linear
New Or Remanufactured	New
Extended Length	526
Dust Shield Included	Yes
Dust Shield Material	Rubber
Travel Length	116
Springs Included	Yes
Progressive Spring Rate	No
Spring Seat Included	Yes
Coil Over Springs Included	Yes
Adjustable Damping	No
Internal Construction Type	Twin-Tube
Heavy Duty Crimping Rings	No
Internal Damper Type	Hydraulic
Protective Aluminum Can	No
Air Adjustable	No
Air Bladder	No
Air Bladder Material	No
Air Ride Suspension	No
Body End Measuring Point	Center Eye
Adjustable Rebound	No
Active or Passive Suspension	Passive
Bladder(s) Included	No
Bladder Heavy Duty Crimping Rings Included	No
Bladder Sleeve(s) Included	No
Adjustable Compression	No
Adjustable Ride Height	No
Coil Spring Included	Yes
Outer Housing Diameter	70
Shock/strut Color	Black
UPC	00815710021654
Origin Country:	CN
Weight:	11.6Lb. (5.28 kg.)
Package Dimensions:	29" x 7" x 7" (73.7 cm x 17.8 cm x 17.8 cm)

2 Year Warranty - (Air Compressors 2 Years)

Arnott SK-3598 Suspension Strut and Coil Spring Assembly
