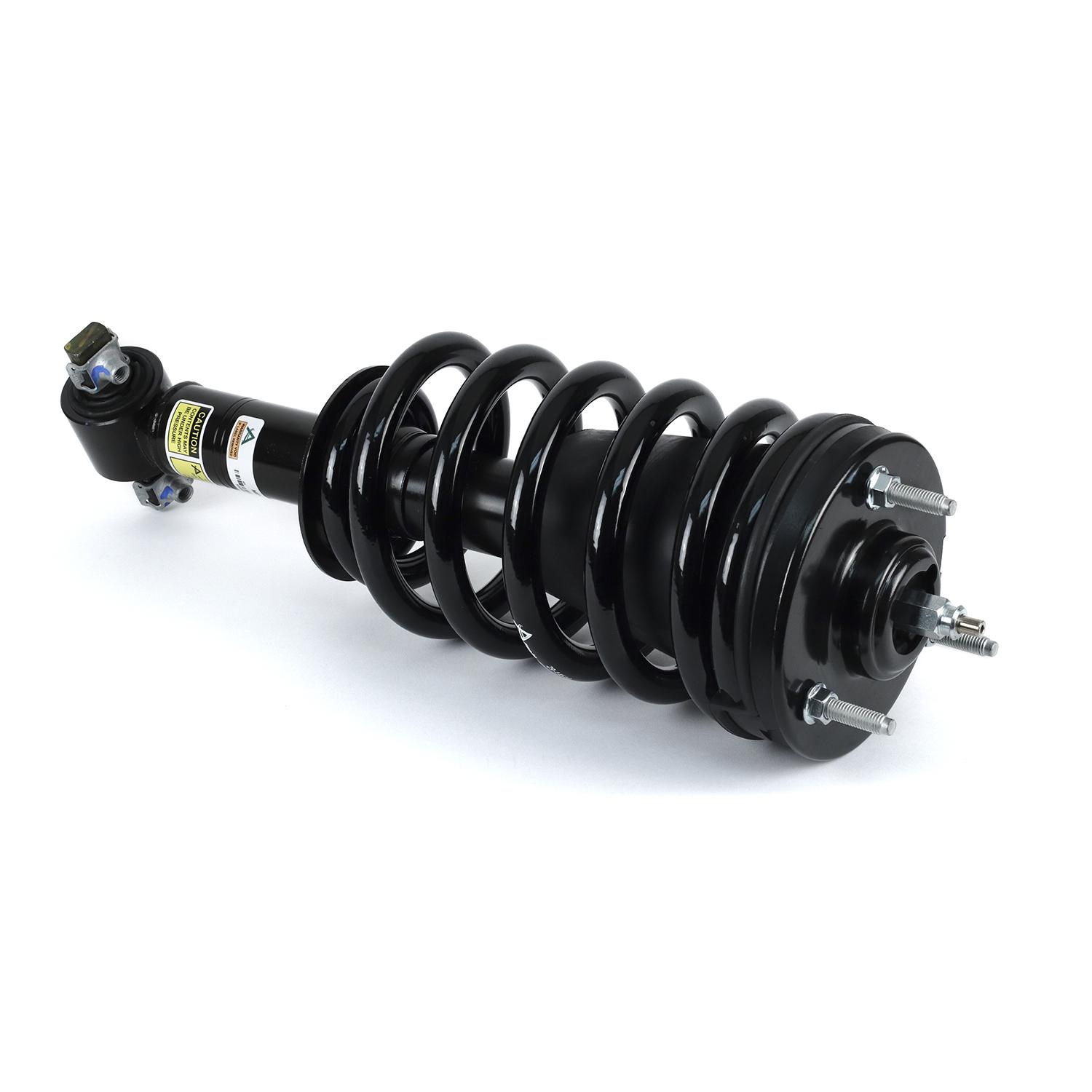

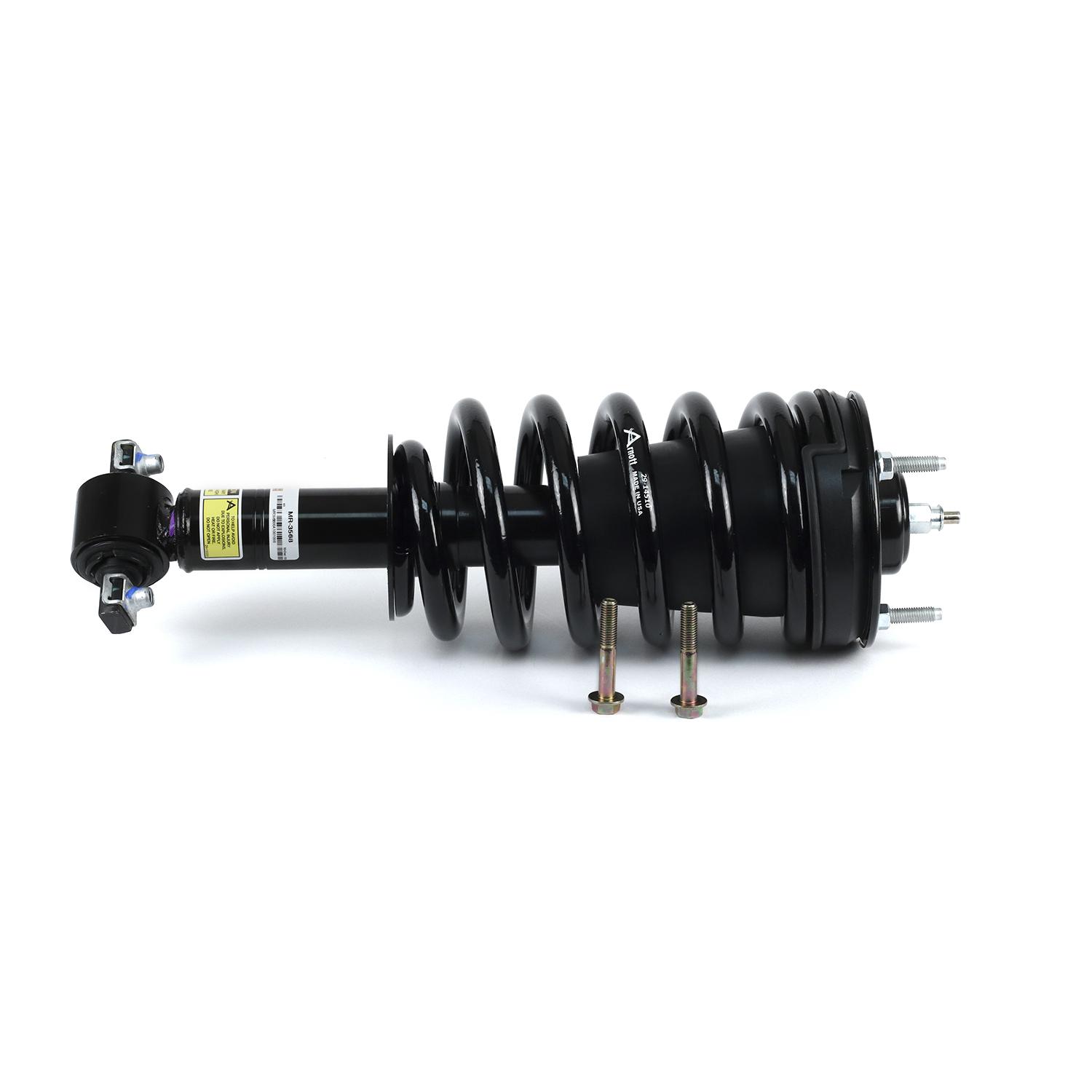

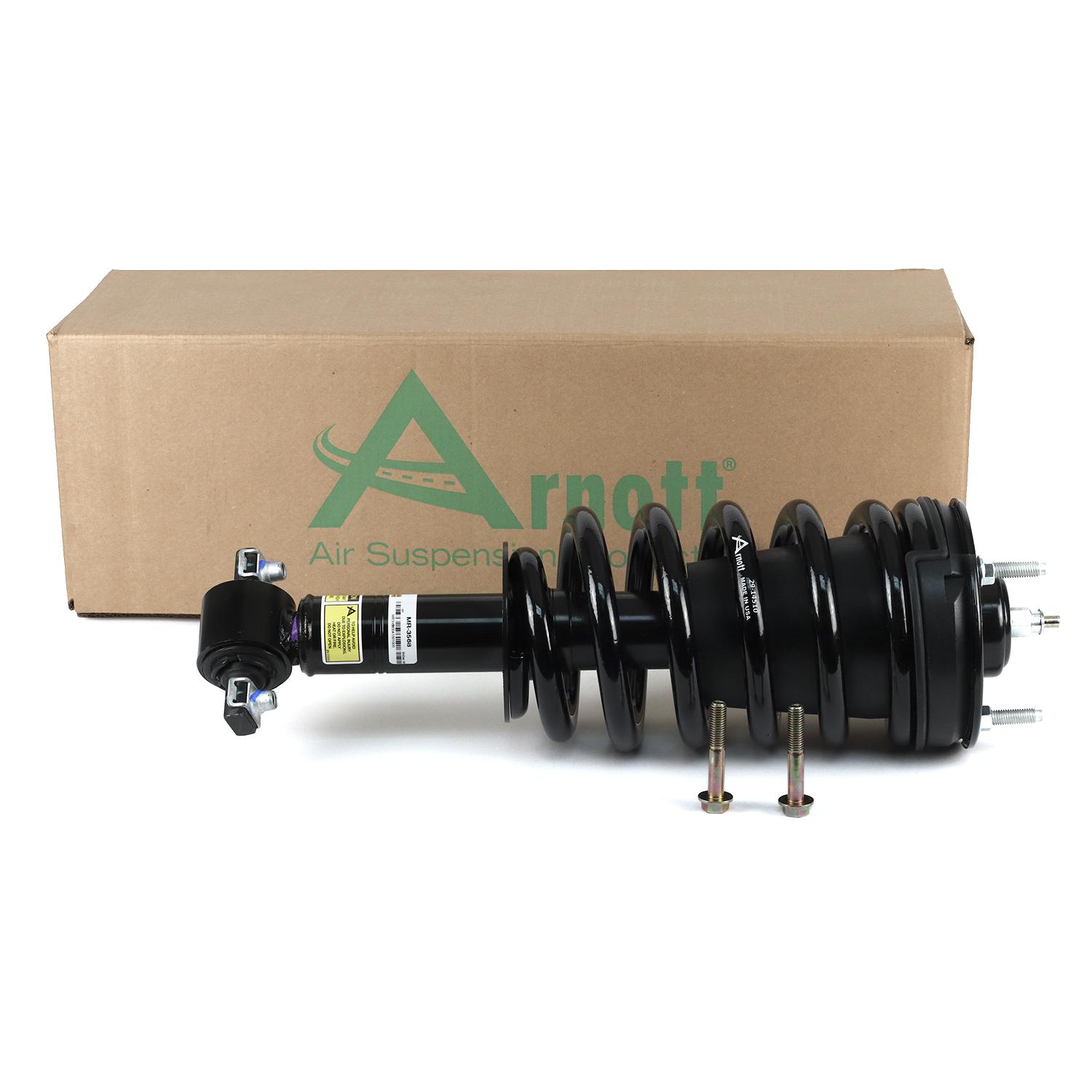

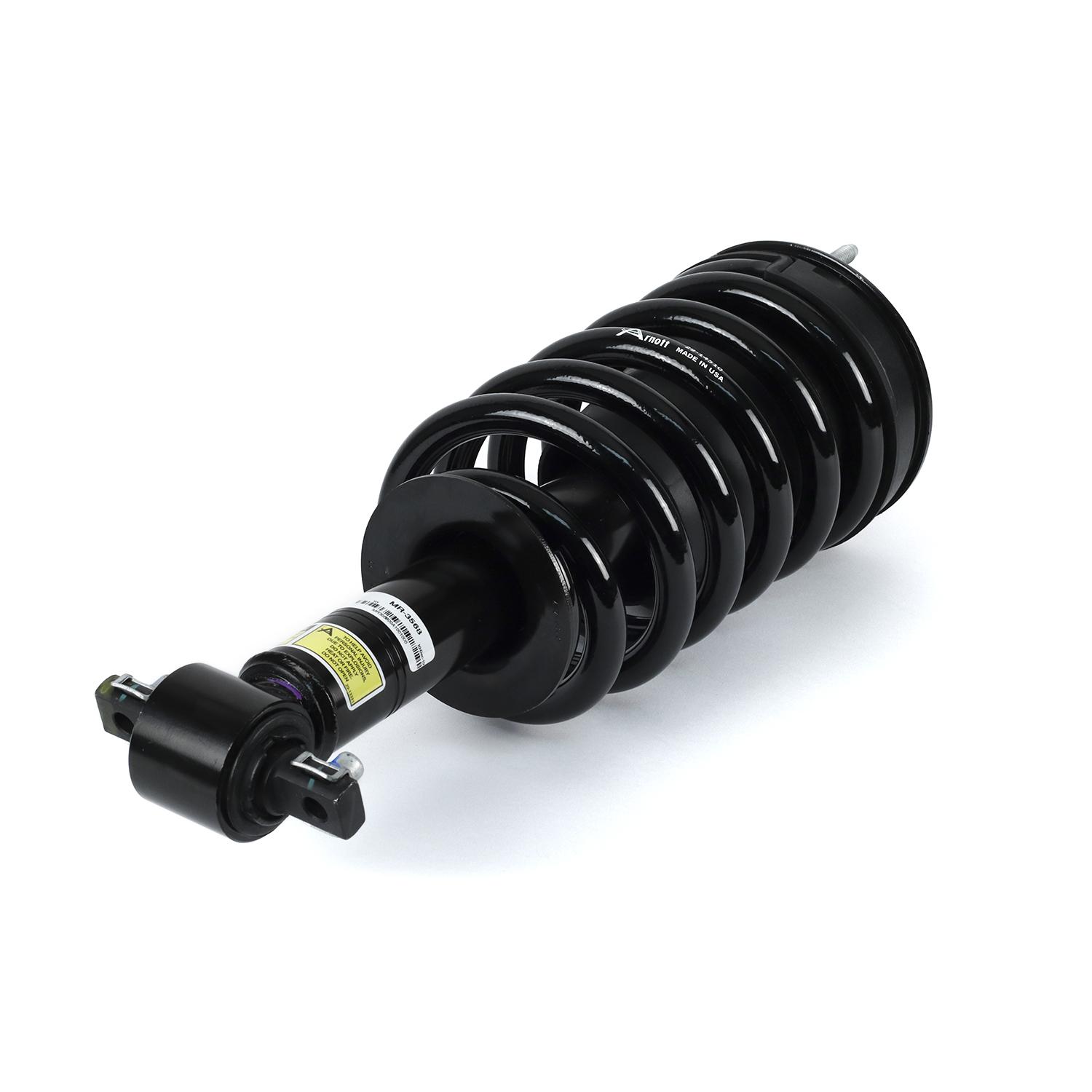

Arnott MR-3568 Suspension Strut and Coil Spring Assembly in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Connects to ECU
Installation Manual Available
New Spring Seat, Isolator and Mounting Hardware
OES design & components
Pre-assembled with a new steel coil spring
Universal Strut Fits Left or Right Side
2-Year Warranty
OE replacement GM magnetic coil-over strut assembly
Replace in Pairs
MR-3568 is a new universal fit magnetic coil-over strut assembly for long and short wheelbase 2007-2014 GM SUVs (GMT9XX Platform) equipped with the GM magnetorheological damper system (Z95 RPO). This magnetically controlled loaded strut from Arnott is a direct OE replacement. The monotube damper is filled with magnetorheological fluid which is a synthetic hydrocarbon oil containing iron particles that are easily magnetized. The damper includes an electromagnetic coil which, when turned on, causes the magnetized iron particles to act in a way that changes the effective viscosity (and stiffness) of the suspension. Arnott's new universal magnetic strut, which fits the left or right side, connects to the vehicle's ECU with no modifications. This product is pr

Grade Type	Standard
Housing Material	Steel
Mounting Hardware Included	Yes
Bearing Plate Included	No
Lower Mounting Isolator Included	No
Upper Mounting Isolator Included	Yes
Lower Mount Type	Cross Pin
Upper Mount Type	Stud
Adjustable	No
Gas Charged	No
Shock Spring Assisted	Yes
Boot Included	Yes
Compressed Length	444.5
Body Diameter	115
Boot Color	Black
Shock Absorber Rod End Measuring Point	Shoulder of Stud
Spring Isolators Included	Yes
Spring Rate Type	Linear
New Or Remanufactured	New
Extended Length	552.45
Dust Shield Included	Yes
Dust Shield Material	Rubber
Travel Length	107.95
Springs Included	Yes
Progressive Spring Rate	No
Spring Seat Included	Yes
Coil Over Springs Included	Yes
Adjustable Damping	Yes
Internal Construction Type	Monotube
Heavy Duty Crimping Rings	No
Internal Damper Type	Magnetic
Protective Aluminum Can	No
Air Adjustable	No
Air Bladder	No
Air Bladder Material	No
Air Ride Suspension	No
Body End Measuring Point	Center Eye
Adjustable Rebound	No
Active or Passive Suspension	Active
Bladder(s) Included	No
Bladder Heavy Duty Crimping Rings Included	No
Bladder Sleeve(s) Included	No
Adjustable Compression	No
Adjustable Ride Height	No
Coil Spring Included	Yes
Outer Housing Diameter	115
Shock/strut Color	Black
UPC	00815710021357
Origin Country:	US
Weight:	28.41Lb. (12.91 kg.)
Package Dimensions:	25.8" x 8.5" x 8.5" (65.4 cm x 21.6 cm x 21.6 cm)

2 Year Warranty - (Air Compressors 2 Years)
