Arnott AS-3429 Shock Absorber in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Engineered in the USA
Goodyear air spring
Improved ride & handling
Converts active to passive
Replace in Pairs
Twin tube shock

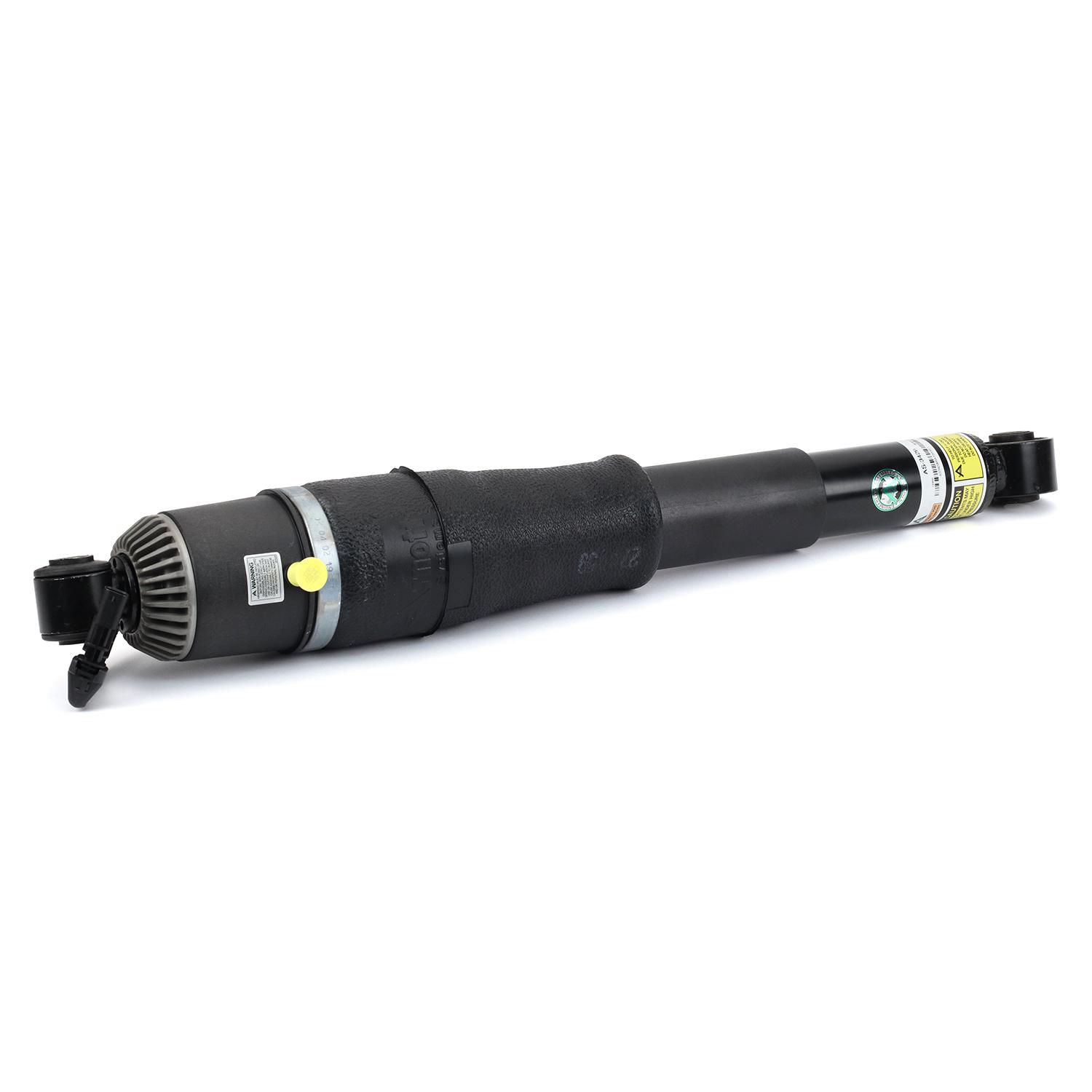

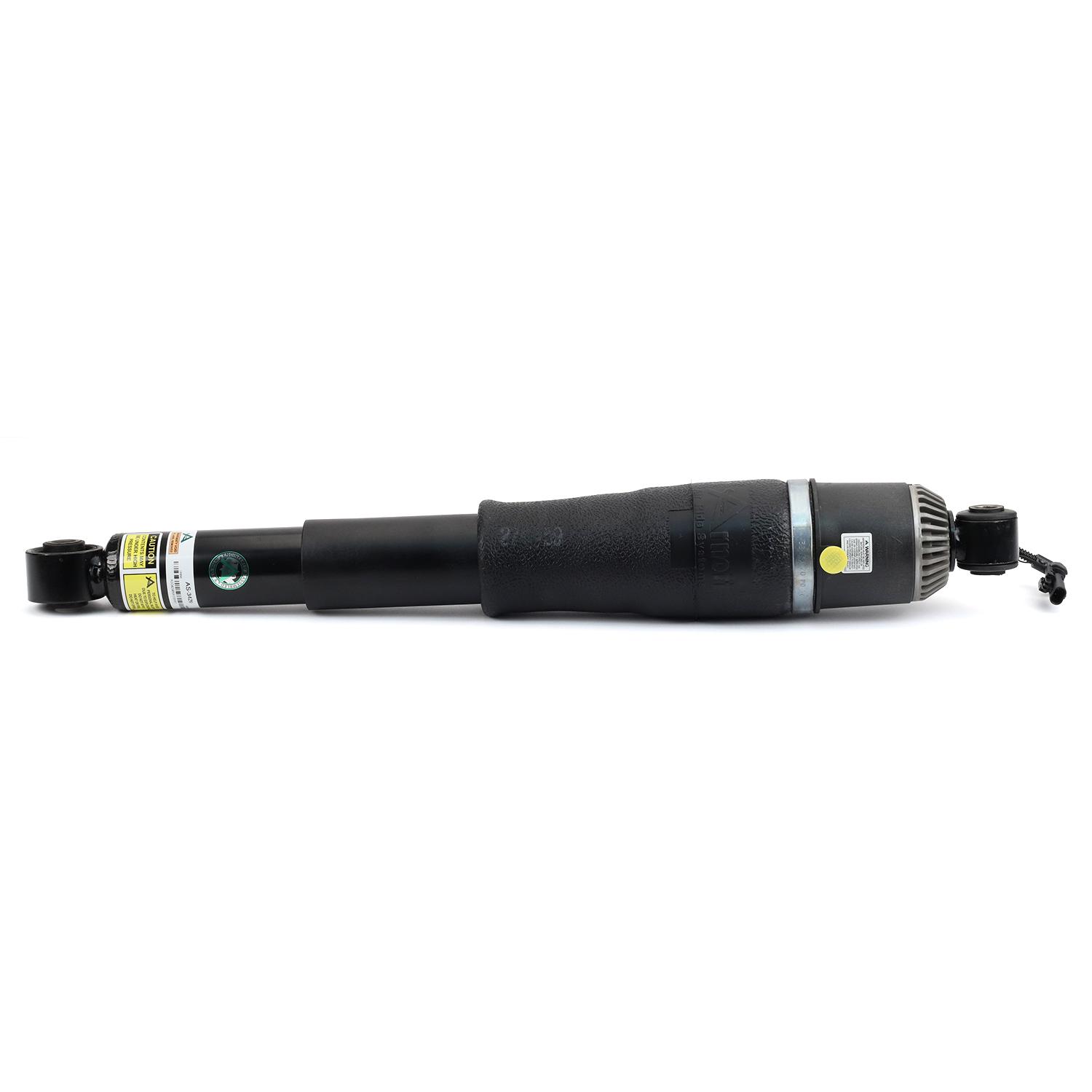

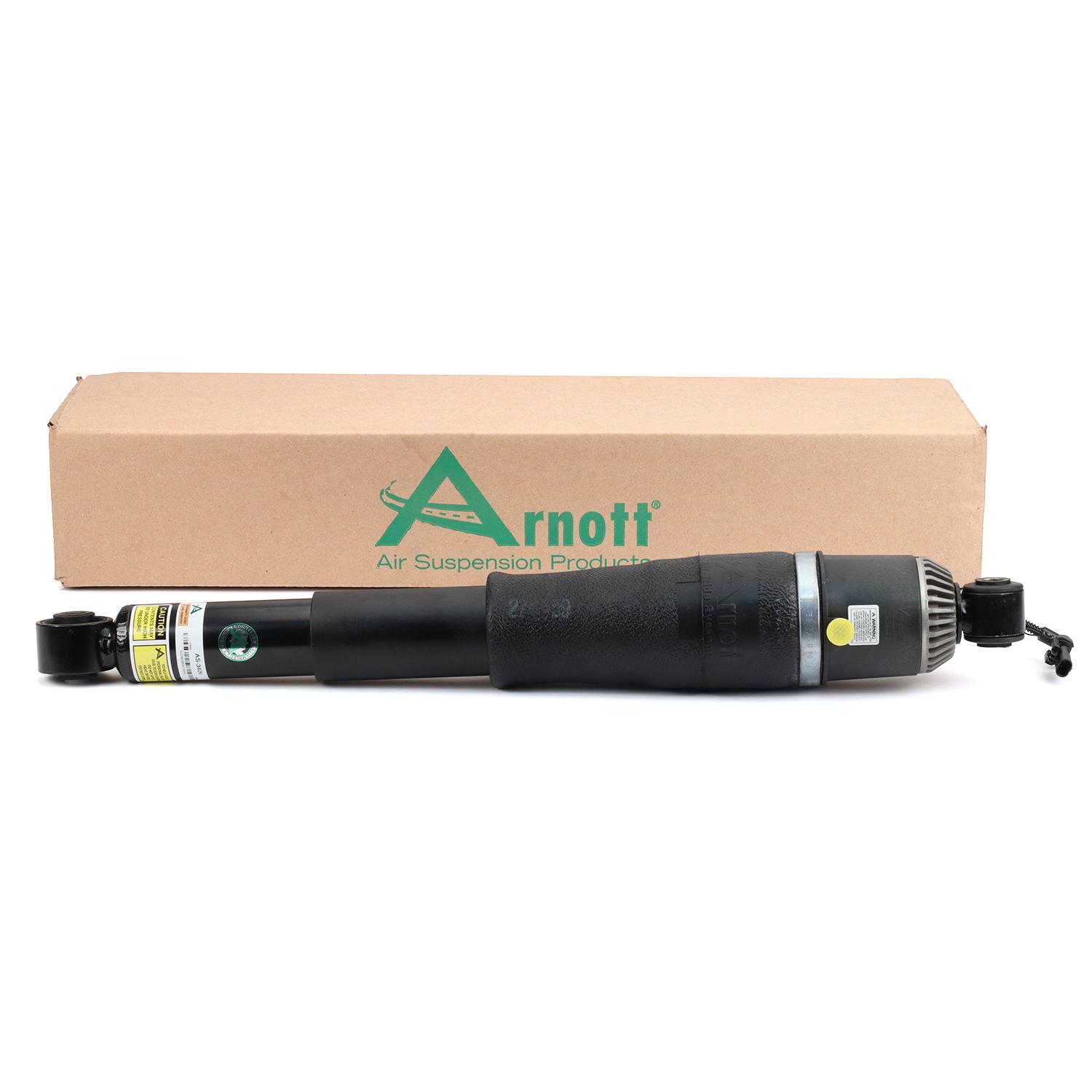

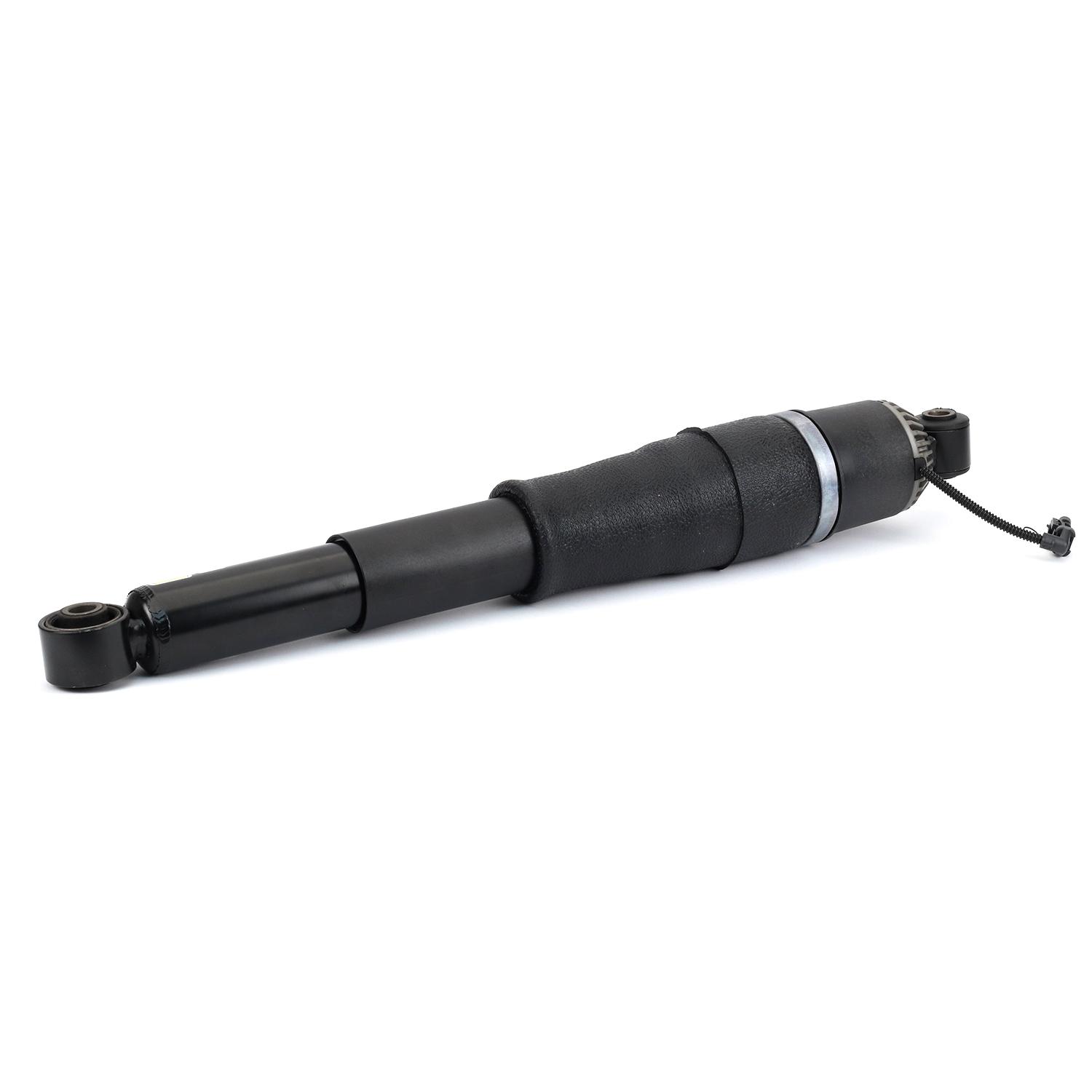

Arnott's rear air shock AS-3429 for 2015-2020 GMÂ© trucks and SUVs (K2XX Chassis originally equipped with MagneRide) is the ideal replacement for your failing rear air assisted shock. This Arnott twin tube shock, which was engineered in the USA, includes a passive damper which has been custom tuned to deliver control, stability, and comfort. Arnott's new aftermarket rear shock bypasses the vehicle's auto-damping system and incorporates a sensor which eliminates dash panel error messages.

Grade Type	Standard
Mounting Hardware Included	No
Bearing Plate Included	Yes
Lower Mounting Isolator Included	Yes
Upper Mounting Isolator Included	Yes
Lower Mount Type	Loop/Eyelet
Upper Mount Type	Stud
Adjustable	No
Shock Spring Assisted	Yes
Compressed Length	379
Boot Color	Black
Shock Absorber Rod End Measuring Point	Shoulder of Stud
Spring Isolators Included	Yes
Spring Rate Type	Progressive
Extended Length	536
Dust Shield Material	N/A
Travel Length	157
Springs Included	Yes
Progressive Spring Rate	Progressive
Spring Seat Included	No
Coil Over Springs Included	N/A
Adjustable Damping	No
Internal Construction Type	Twin-Tube
Heavy Duty Crimping Rings	Yes
Internal Damper Type	Hydraulic
Protective Aluminum Can	No
Air Adjustable	Yes
Air Bladder Material	Rubber
Air Ride Suspension	Yes
Body End Measuring Point	Center Eye
Cylinder Color	N/A
UPC	00815710019965
Origin Country:	US
Weight:	19.61Lb. (8.91 kg.)
Package Dimensions:	26" x 6.3" x 5.3" (66 cm x 15.9 cm x 13.3 cm)

2 Year Warranty - (Air Compressors 2 Years)

Arnott AS-3429 Shock Absorber
