Arnott AS-3066 Shock Absorber in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Eibach shock
Engineered in the USA
Goodyear air spring
Improved ride & handling
Converts adaptive to passive
Replace in Pairs

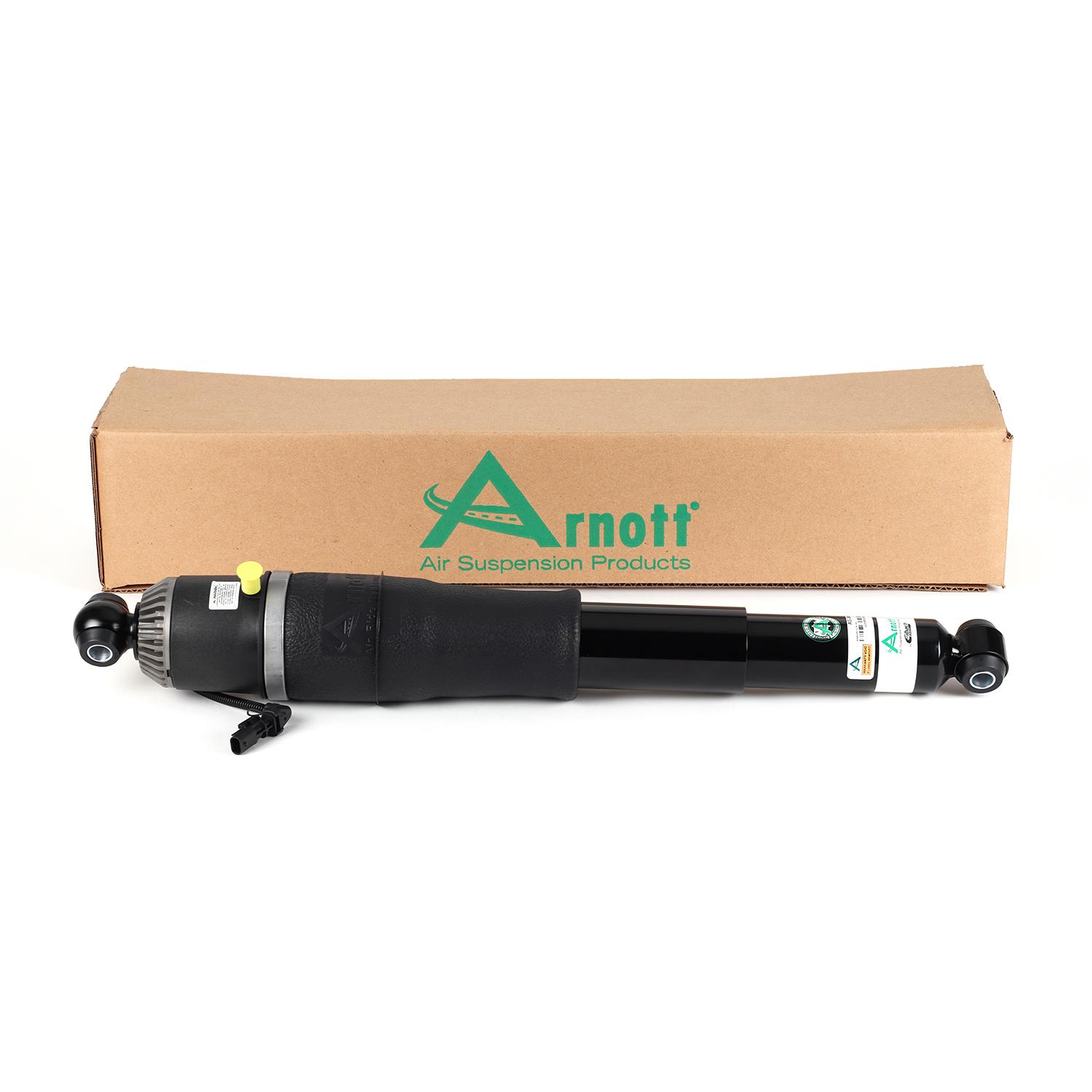

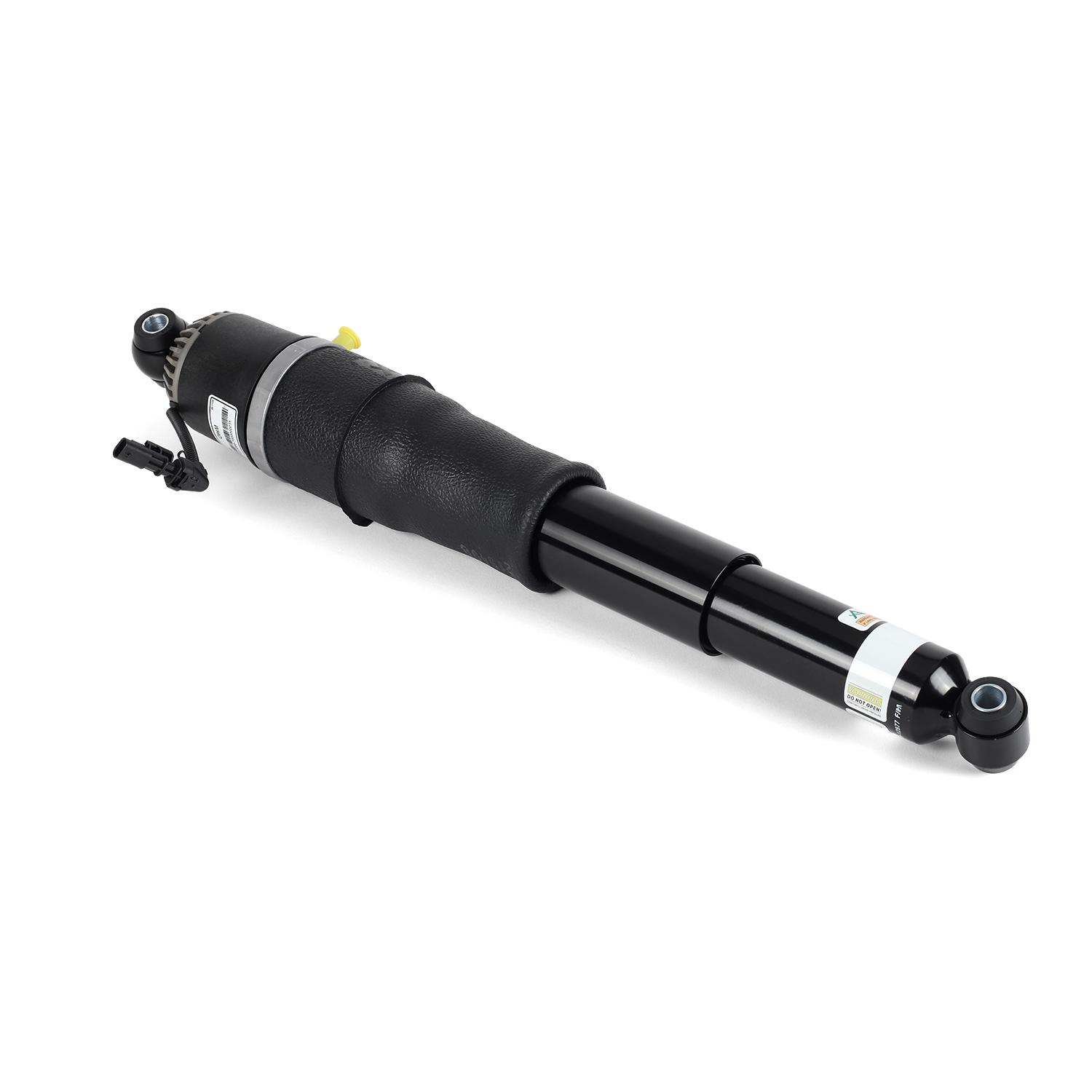

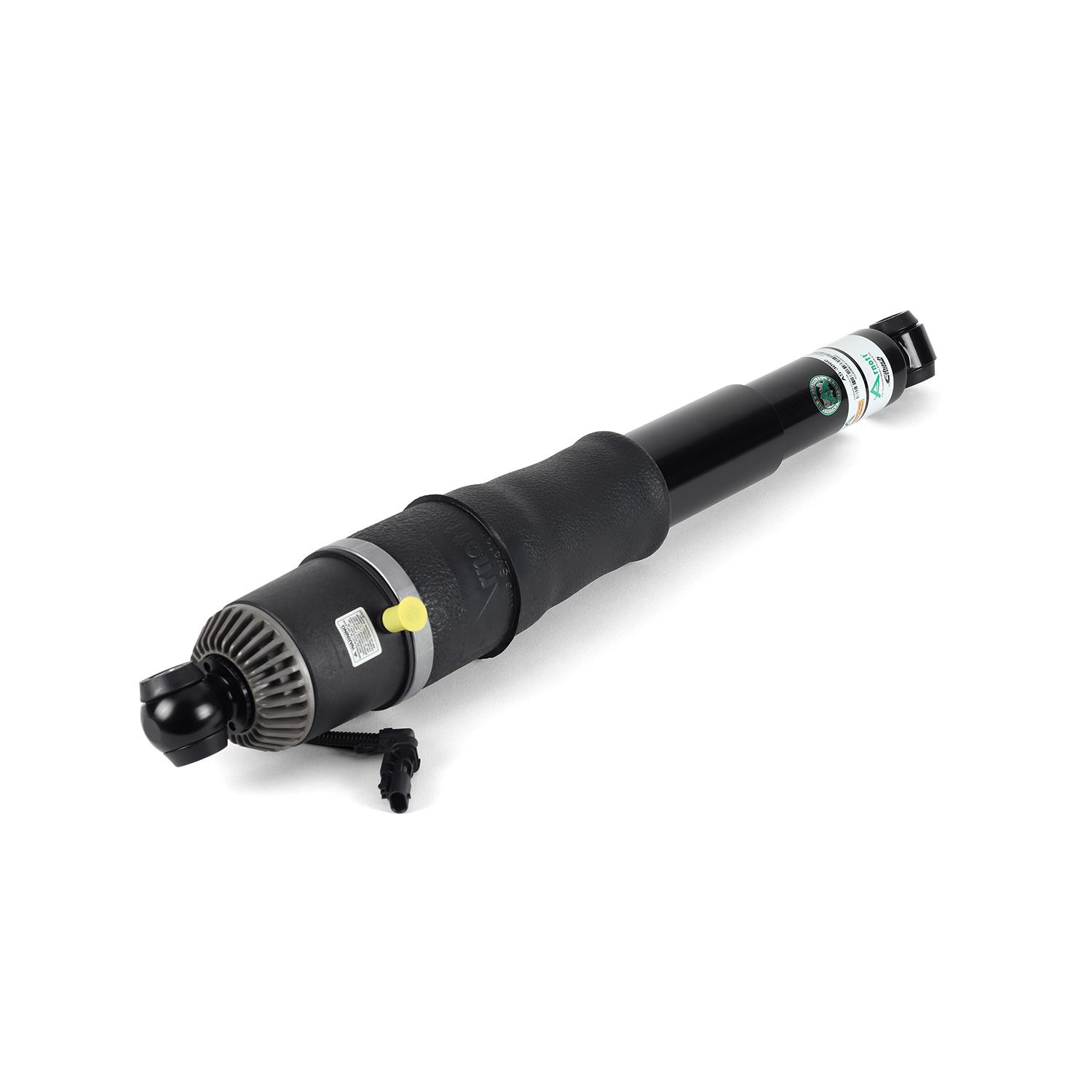

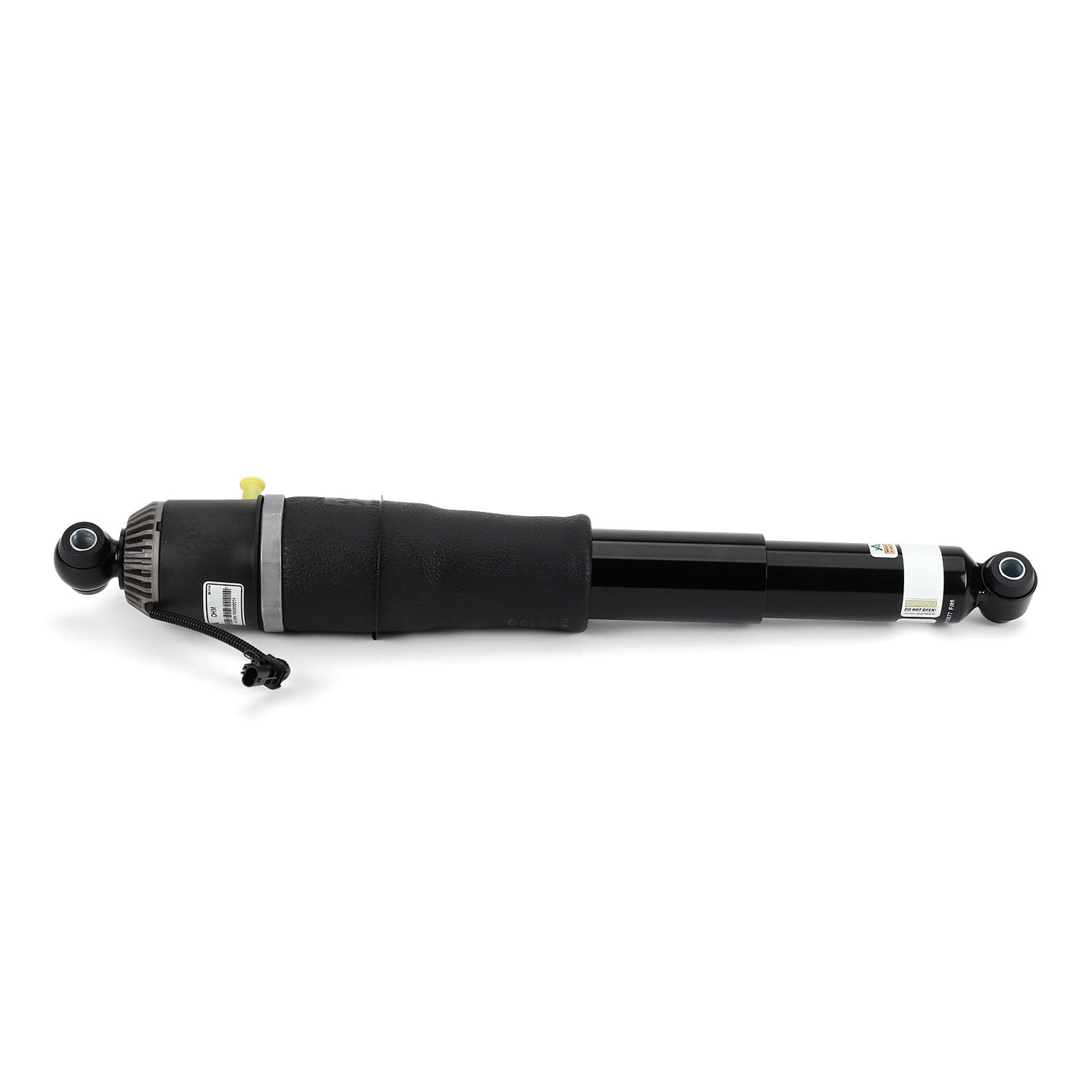

Arnott's rear air shock AS-3066 for 2015-2020 GMÂ© trucks and SUVs (K2XX Chassis) equipped with MagneRideÂ© is the ideal replacement for your failing rear air assisted shock. This Arnott air shock, which was engineered in the USA, includes a passive damper which has been custom tuned to deliver control, stability, and comfort. Arnott's new aftermarket rear monotube shock bypasses the vehicle's auto-damping system and incorporates a sensor which eliminates dash panel error messages.

Grade Type	Standard
Mounting Hardware Included	Yes
Bearing Plate Included	No
Upper Mounting Isolator Included	Yes
Lower Mount Type	Loop/Eyelet
Upper Mount Type	Loop/Eyelet
Adjustable	No
Shock Spring Assisted	Yes
Compressed Length	374.3
Boot Color	N/A
Shock Absorber Rod End Measuring Point	Shoulder of Stud
Spring Isolators Included	Yes
Spring Rate Type	Progressive
Extended Length	558
Dust Shield Material	N/A
Travel Length	184
Springs Included	Yes
Progressive Spring Rate	Progressive
Spring Seat Included	No
Coil Over Springs Included	N/A
Internal Construction Type	Monotube
Heavy Duty Crimping Rings	Yes
Internal Damper Type	Hydraulic
Protective Aluminum Can	No
Air Adjustable	Yes
Air Bladder	Yes
Air Bladder Material	Rubber
Air Ride Suspension	Yes
Body End Measuring Point	Center Eye
UPC	00815710016889
Origin Country:	US
Weight:	7.6Lb. (3.46 kg.)
Package Dimensions:	26" x 5.8" x 4.1" (66 cm x 14.6 cm x 10.5 cm)

2 Year Warranty - (Air Compressors 2 Years)
